WHEEL SUSPENSION TRANSMISSION

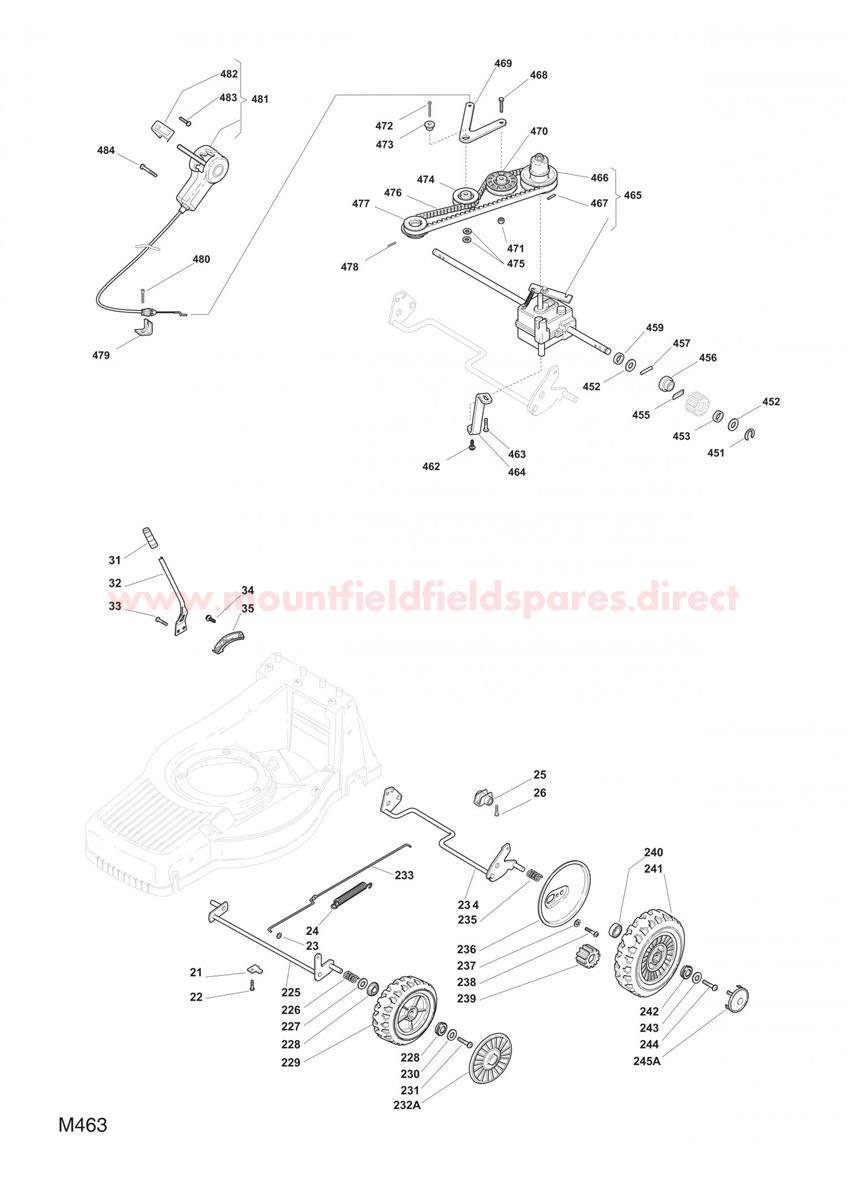

WHEEL SUSPENSION TRANSMISSION assembly details for Mountfield M60PD-ES M61PD M64PD (20100406) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
021322545160/0FRONT AXLE PLATE (OBSOLETE) (OBSOLETE)N/A
022112735664/0SCREW M6 x 16£2.02 Add to
023112604898/0STARLOCK WASHER D=7£2.02 Add to
024122446181/0SPRING£7.10 Add to
025322785153/0GEARBOX SUPPORT BRACKET£16.10 Add to
026112735664/0SCREW M6 x 16£2.02 Add to
031322399808/0HEIGHT ADJUST KNOB£2.87 Add to
0321111-2816-01HEIGHT ADJUST LEVER (OBSOLETE)N/A
033112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
034112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
035322735563/0HEIGHT ADJUST QUADRANT£15.41 Add to
225381002847/0FRONT WHEELS AXLE (OBSOLETE)N/A
226122430210/0SPRING£2.06 Add to
227112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
228122122206/0BEARING£2.32 Add to
229381007351/0WHEEL D=170£13.66 Add to
230112521460/0WASHER M6 6.5 x 22 x 1.5£0.79 Add to
231112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
232A322110491/0HUB CAP D=170 [GREY]£2.47 Add to
233122033323/0HEIGHT ADJUST ROD£13.09 Add to
234381002823/0REAR WHEELS AXLE (OBSOLETE)N/A
235122430215/0SPRING£3.69 Add to
236322600121/0WHEEL COVER PLATE D=190 (OBSOLETE) (OBSOLETE)N/A
237112521460/0WASHER M6 6.5 x 22 x 1.5£0.79 Add to
238112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
239122570125/0RIGHT/LEFT PINION GEAR£15.00 Add to
240119216038/0BEARING 6201-2RS C3£6.27 Add to
241381007362/0WHEEL D=215£46.38 Add to
242122122201/0BEARING-PLASTIC CASE£2.74 Add to
243112521460/0WASHER M6 6.5 x 22 x 1.5£0.79 Add to
244112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
245A322110384/0HUB CAP 190/215 [GREY]£7.63 Add to
451112000957/0CIRCLIP D=10£2.59 Add to
452112520032/0WASHER 12 x 18 x 1£2.06 Add to
453322160520/0DUST COVER£2.06 Add to
455122076645/0DRIVE KEY 4 x 8 x 15£2.06 Add to
456322170630/1GEARBOX PINION SPACER£5.32 Add to
457122753002/0CYLINDRICAL PIN 5 x 25£2.06 Add to
459112520032/0WASHER 12 x 18 x 1£2.06 Add to
459119035152/0SEAL RING 12 x 18 x 4£5.19 Add to
462112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
463112735664/0SCREW M6 x 16£2.02 Add to
464322778407/0GEARBOX SUPPORT BRACKET£11.46 Add to
465181003086/0GEARBOX 4 SPEED [BLACK]£230.29 Add to
466122601916/0VARIATOR PULLEY (OBSOLETE)N/A
467112645700/0PIN£2.06 Add to
468112674550/0SCREW TE M6 x 30£2.06 Add to
469322320003/0TENSION ARM£14.45 Add to
470122601914/0BELT GUIDE PULLEY£21.95 Add to
471112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
472112735669/0SCREW TCB TORX M6 x 50£2.06 Add to
473122671656/0WASHER£6.42 Add to
474122601915/0TENSION PULLEY£21.82 Add to
475112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
476135064383/0TRAPEZOIDAL BELT XPZ LP=837£15.04 Add to
477122601917/0DRIVE ENGINE PULLEY D=22mm£24.50 Add to
478112714312/0DOWEL PIN M6 x 12£2.06 Add to
479322806619/0WZ SPEED CABLE FIX.SUPPORT TURBO 4S£5.05 Add to
480112735664/0SCREW M6 x 16£2.02 Add to
481381007098/04 SPEED CABLE ASSEMBLY£46.06 Add to
482322399809/04 SPEED CABLE KNOB£2.06 Add to
483112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
484112728702/0SELF-TAP SCREW WN1451 K50 x 40£2.06 Add to
