MULCHING 5010 PD SILENT assembly details for Mountfield MULCHING5010PD SILENT (20100706) 2008 model

Parts list

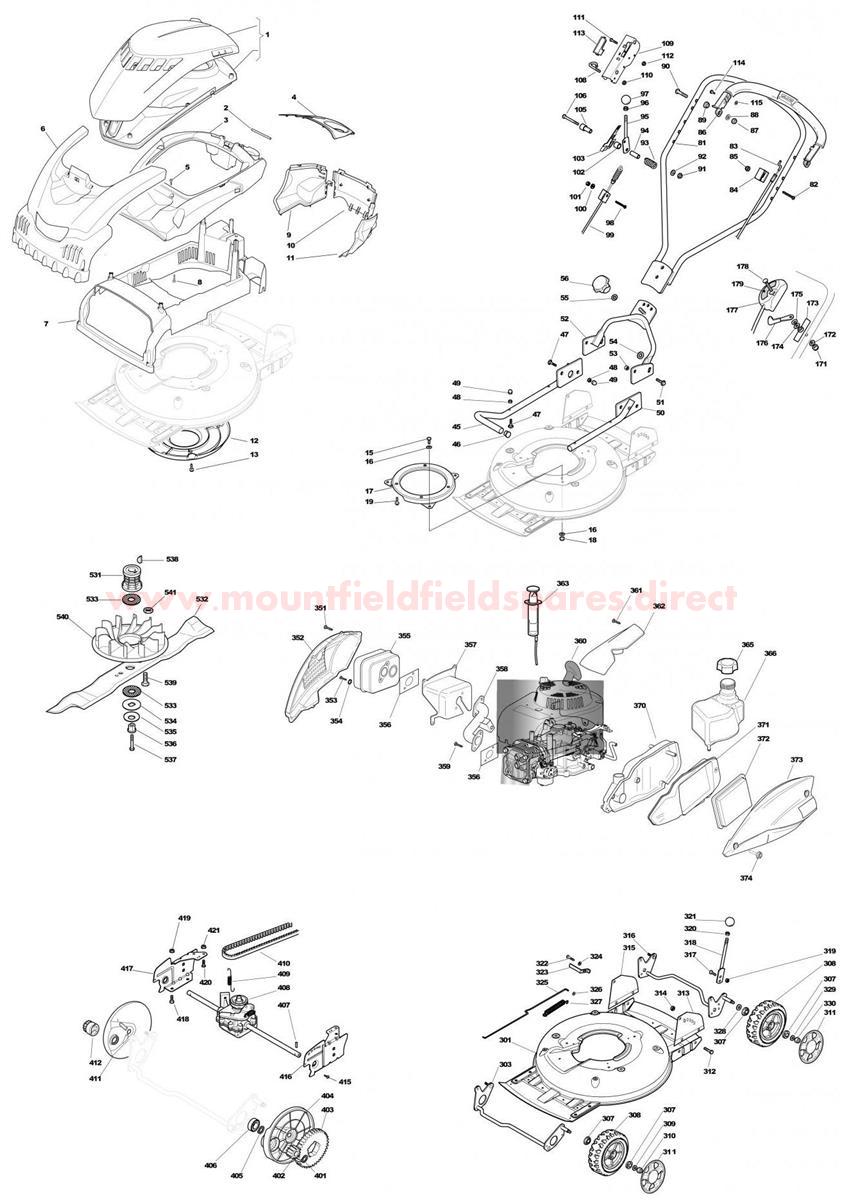

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381119702/0UPPER ENGINE COVER [GREY]£57.52 Add to
003322109814/0COVER UPPER RED RAL 3003£31.36 Add to
004322109818/0Cover-blac (OBSOLETE)N/A
005112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
006322109821/0FRONT COVER RED RAL 3003 2008£21.26 Add to
007322109812/0COVER LOWER RED 3003£48.74 Add to
008112728696/0SELF-TAPPING SCREW 4 x 12£2.06 Add to
009322109816/0COVER REAR RIGHT BLACK£10.23 Add to
010322109815/0Cover-rear, blac (OBSOLETE)N/A
011322109817/0Cover-rear, blac (OBSOLETE)N/A
012322060227/0BELT PROTECTION£9.05 Add to
013112728903/0SCREW£1.69 Add to
015112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
016112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
017322207219/1ENGINE MOUNTING PLATE [BLACK]£24.81 Add to
018112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
019112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
042181003801/1BOLT/PULL CORD GUIDE£3.44 Add to
043112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
045381006383/0HANDLE LOWER 2008£44.46 Add to
046118566114/0HANDLE CAP [BLACK]£2.06 Add to
047112819100/0CARRIAGE BOLT M8 x 40£2.06 Add to
048112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
049118203854/0NUT CAP M8 [BLACK]£2.06 Add to
050381006379/0L/H LOWER HANDLE [BLACK] MCS50£38.44 Add to
051112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
052381006367/2STIGA PRO UPPER HANDLE ASS.Y MC BLACK£116.11 Add to
053112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
054112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
055112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
056322399813/0HANDLE KNOB [BLACK]£20.89 Add to
081381006367/2STIGA PRO UPPER HANDLE ASS.Y MC BLACK£116.11 Add to
082112727783/0CROSS-HEAD SCREW M6 x 40£2.06 Add to
083181000730/0ENGINE BRAKE CABLE L=1157£13.77 Add to
084322551685/0CABLE HOLDER BLOCK£7.52 Add to
085112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
086381003318/1ENGINE BRAKE LEVER£34.35 Add to
087112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
088112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
089122671660/1WASHER£3.69 Add to
090112727784/0CROSS-HEAD SCREW M6 x 45£1.79 Add to
091112292100/0HEXAGON NUT M6£1.47 Add to
092112530060/0SPRING WASHER M6£1.79 Add to
093122450446/0SPRING£2.06 Add to
094122170840/0SPACER£6.32 Add to
095381003313/0CLUTCH DRIVE LEVER£16.22 Add to
096112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
097322399812/0BALL KNOB£3.41 Add to
098112727791/0CROSS-HEAD SCREW M6 x 20£0.79 Add to
099381000745/1CLUTCH DRIVE CABLE G.T.£23.08 Add to
100112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
101112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
10222170843/0Spacer (OBSOLETE)N/A
103322551653/0SUPPORT LEVER PLATE£4.52 Add to
105122170842/0SPACER£2.59 Add to
106112727786/0CROSS-HEAD SCREW M6 x 60£2.32 Add to
108122430314/0PULL CORD GUIDE£6.27 Add to
109381004405/0DASHBOARD£21.26 Add to
110112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
111112727792/0CROSS-HEAD SCREW M6 x 35£2.06 Add to
112112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
113322500050/0DECAL PLATE£2.06 Add to
114122524342/0FIXING PIN£2.06 Add to
115112604897/0STARLOCK WASHER D=5£2.06 Add to
171112291000/0HEXAGON NUT M5£2.06 Add to
172112581500/0WASHER M5£2.06 Add to
173322171006/0SPACER D=28£2.06 Add to
174112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
175112508100/0SPRING WASHER 10.2 x 20 x 0.8£2.06 Add to
176381007279/1THROTTLE LEVER£2.06 Add to
177481007080/0THROTTLE CABLE£24.95 Add to
178112815030/0SCREW TTDQ M5 x 55£3.64 Add to
179114356702/0THROTTLE DECAL£2.06 Add to
30181002909/1Deck Grey (OBSOLETE)N/A
303381002849/0FRONT WHEELS AXLE£39.80 Add to
307122122206/0BEARING£2.32 Add to
309112369500/0SPRING WASHER D=8£1.79 Add to
310112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
311322110382/0HUB CAP D=210 [GREY]£4.27 Add to
312112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
313381545105/0LEFT REAR PLATE£10.50 Add to
314112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
315381545104/0RIGHT REAR PLATE£10.77 Add to
316381302861/1REAR WHEELS AXLE£45.26 Add to
317112789000/0SCREW TE M5 x 12£2.06 Add to
318381003331/0HEIGHT ADJUST LEVER£23.04 Add to
319112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
320112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
321322399812/0BALL KNOB£3.41 Add to
322112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
323322551529/0WHEELS CLEANING PLATE£4.10 Add to
324112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
325122033329/0HEIGHT ADJUST ROD£9.62 Add to
326112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
327122446184/0SPRING£5.21 Add to
328112530150/0SPRING WASHER M12£1.79 Add to
329112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
330112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
351112735111/0FLANGED TAPPING SCREW 4.2 x 9.5 WZ£2.18 Add to
352322601005/0MUFFLER PROTECTION£153.32 Add to
353112689590/0HEX HEAD SCREW M6 X 90£5.21 Add to
354112582100/0LOCK WASHER M6£2.06 Add to
355118550269/0MUFFLER£35.71 Add to
356118550270/0MUFFLER GASKET£12.55 Add to
357381750101/0MUFFLER PROTECTION£62.66 Add to
358118738233/0Exhaust tub (OBSOLETE)N/A
359112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
36112728700/0Screw (OBSOLETE)N/A
362322785269/0COVER£15.98 Add to
363118718000/0OIL EMPTYING SYRINGE£16.22 Add to
365BS-692046FUEL CAP OHV£10.71 Add to
366322735150/0FUEL TANK£23.60 Add to
370322785268/0Air cleaner base (OBSOLETE)N/A
371322785267/0COVER 2009£8.42 Add to
372118550257/0PAPER AIR FILTER£12.00 Add to
373322109746/0Air cleaner cove (OBSOLETE)N/A
374381004362/0SCREW£5.21 Add to
401112608600/0CIRCLIP D=12£2.08 Add to
402122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
403122120105/1DRIVE GEAR WHEEL£10.82 Add to
404122600092/0RIGHT WHEEL COVER£3.69 Add to
405112608600/0CIRCLIP D=12£2.08 Add to
406119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
407122753000/0PIN D=5.2 x 25.65£2.06 Add to
408181003095/0GEARBOX [BLACK] DOG CLUTCH£97.03 Add to
409122450437/0SPRING£3.55 Add to
410135063902/1TRAPEZOIDAL BELT Z 29.5 LP=772£12.24 Add to
411122600093/0LEFT WHEEL COVER£3.69 Add to
412122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
415112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
416322778421/0LEFT FRONT BRACKET£14.45 Add to
417322778419/0RIGHT FRONT BRACKET£14.45 Add to
418112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
419112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
420112815200/0SCREW TTDQ M6X16£2.06 Add to
421112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
531122465611/0BLADE BOSS D=22£16.16 Add to
532181004148/0MULCHING BLADE MC 50 SILENT£15.54 Add to
533322672110/1FRICTION WASHER 18.3 x 60 x 1.5£1.91 Add to
534322672105/0BLADE WASHER 60 x 18 x 2£1.91 Add to
535112508120/0SPRING WASHER 18.4 x 50 x 2£3.72 Add to
536122041940/0METAL BUSH 25 x 19 x 15£5.87 Add to
537112736850/0HEX-HEAD SCREW 3/8" x 2½"£2.32 Add to
538112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
539112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
540322465635/0Fa (OBSOLETE)N/A
541112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
