MULCHING 5030 PD INOX

MULCHING 5030 PD INOX assembly details for Mountfield MULCHING5030PD INOX (20100706) 2008 model

Parts list

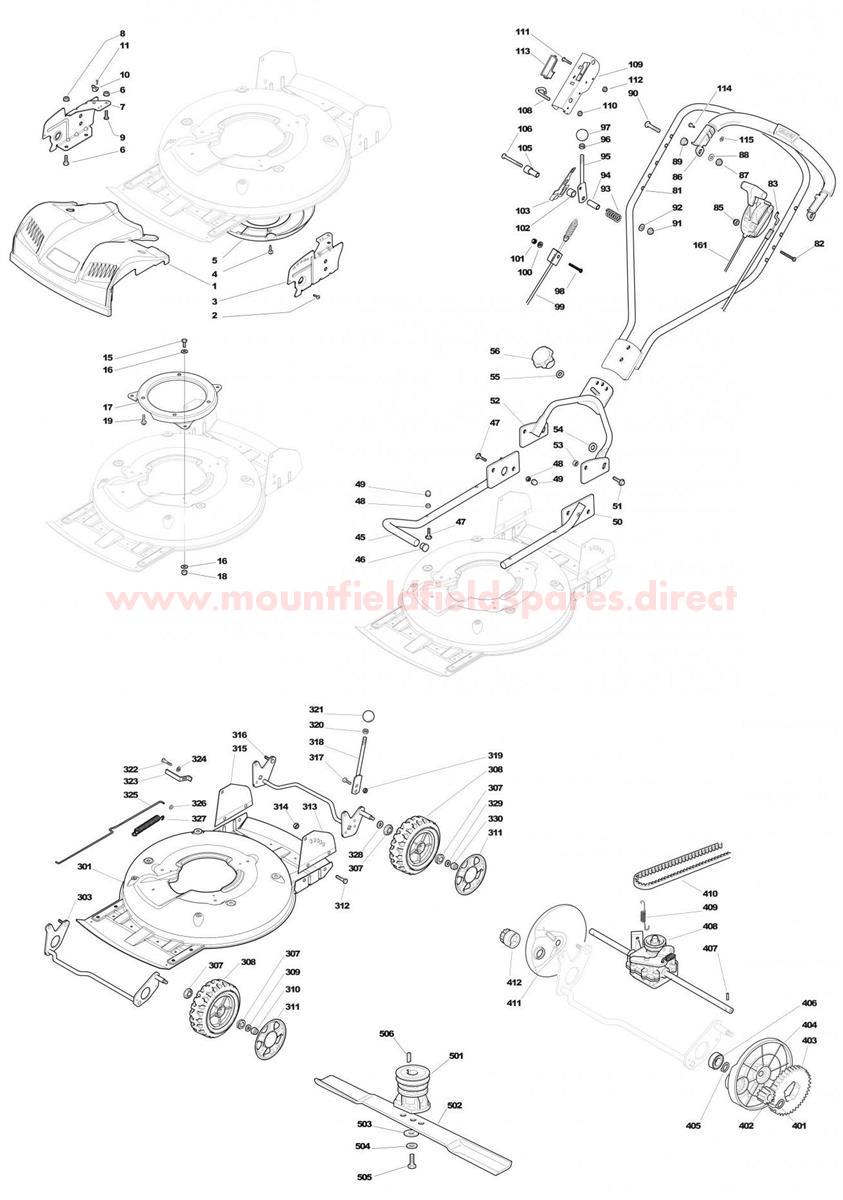

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322226097/1PLASTIC FRONT COVER [YELLOW]£13.20 Add to
001322226098/1PLASTIC FRONT COVER [GREY]£12.14 Add to
002112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
003322778421/0LEFT FRONT BRACKET£14.45 Add to
004112728903/0SCREW£1.69 Add to
005322060220/0BELT PROTECTION GUARD£7.10 Add to
006112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
007322778419/0RIGHT FRONT BRACKET£14.45 Add to
008112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
009112815200/0SCREW TTDQ M6X16£2.06 Add to
010322020400/0PLASTIC LUG SCREW£2.06 Add to
011112728523/0SELF-TAPPING SCREW TCB 4 x 12£2.06 Add to
012112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
015112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
016112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
017322207219/1ENGINE MOUNTING PLATE [BLACK]£24.81 Add to
018112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
019112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
045381006377/0R/H LOWER HANDLE [BLACK] MCS50£37.08 Add to
046118566114/0HANDLE CAP [BLACK]£2.06 Add to
047112819100/0CARRIAGE BOLT M8 x 40£2.06 Add to
048112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
049118203854/0NUT CAP M8 [BLACK]£2.06 Add to
050381006379/0L/H LOWER HANDLE [BLACK] MCS50£38.44 Add to
051112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
052381006365/1LOWER HANDLE PART MC/MCS BLACK£70.31 Add to
053112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
054112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
055112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
056322399813/0HANDLE KNOB [BLACK]£20.89 Add to
081381006367/2STIGA PRO UPPER HANDLE ASS.Y MC BLACK£116.11 Add to
082112727786/0CROSS-HEAD SCREW M6 x 60£2.32 Add to
083181000733/0ENGINE BRAKE CABLE L=1101£12.96 Add to
085112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
086381003318/1ENGINE BRAKE LEVER£34.35 Add to
087112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
088112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
089122671660/1WASHER£3.69 Add to
090112727784/0CROSS-HEAD SCREW M6 x 45£1.79 Add to
091112292100/0HEXAGON NUT M6£1.47 Add to
092112530060/0SPRING WASHER M6£1.79 Add to
093122450446/0SPRING£2.06 Add to
094122170840/0SPACER£6.32 Add to
095381003313/0CLUTCH DRIVE LEVER£16.22 Add to
096112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
097322399812/0BALL KNOB£3.41 Add to
098112727791/0CROSS-HEAD SCREW M6 x 20£0.79 Add to
099381000745/1CLUTCH DRIVE CABLE G.T.£23.08 Add to
100112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
101112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
10222170843/0Spacer (OBSOLETE)N/A
103322551653/0SUPPORT LEVER PLATE£4.52 Add to
105122170842/0SPACER£2.59 Add to
106112727786/0CROSS-HEAD SCREW M6 x 60£2.32 Add to
108122430314/0PULL CORD GUIDE£6.27 Add to
109381004405/0DASHBOARD£21.26 Add to
110112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
111112727792/0CROSS-HEAD SCREW M6 x 35£2.06 Add to
112112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
113322500050/0DECAL PLATE£2.06 Add to
114122524342/0FIXING PIN£2.06 Add to
115112604897/0STARLOCK WASHER D=5£2.06 Add to
161181007130/0THROTTLE CABLE T60 L=1010 HONDA£24.95 Add to
301322064691/0CHASSIS£283.79 Add to
303381002849/0FRONT WHEELS AXLE£39.80 Add to
307122122206/0BEARING£2.32 Add to
309112369500/0SPRING WASHER D=8£1.79 Add to
310112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
311322110382/0HUB CAP D=210 [GREY]£4.27 Add to
312112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
313322545169/0REAR LEFT PLATE HEIGHT ADJUSTMENT MCS 50£8.42 Add to
314112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
315322545167/0REAR RX PLATEHEIGHT ADJUST MCS 50£8.42 Add to
316381302861/1REAR WHEELS AXLE£45.26 Add to
317112789000/0SCREW TE M5 x 12£2.06 Add to
318381003323/0HEIGHT ADJUST LEVER£16.36 Add to
319112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
320112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
321322399812/0BALL KNOB£3.41 Add to
322112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
323322551529/0WHEELS CLEANING PLATE£4.10 Add to
324112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
325122033329/0HEIGHT ADJUST ROD£9.62 Add to
326112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
327122446184/0SPRING£5.21 Add to
328112530150/0SPRING WASHER M12£1.79 Add to
329112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
330112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
401112608600/0CIRCLIP D=12£2.08 Add to
402122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
403122120105/1DRIVE GEAR WHEEL£10.82 Add to
404122600092/0RIGHT WHEEL COVER£3.69 Add to
405112608600/0CIRCLIP D=12£2.08 Add to
406119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
407122753000/0PIN D=5.2 x 25.65£2.06 Add to
408181003095/0GEARBOX [BLACK] DOG CLUTCH£97.03 Add to
409122450437/0SPRING£3.55 Add to
410135063902/1TRAPEZOIDAL BELT Z 29.5 LP=772£12.24 Add to
411122600093/0LEFT WHEEL COVER£3.69 Add to
412122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
501122465608/3BLADE BOSS D=25mm£11.34 Add to
502181004146/0MULTICLIP BLADE 48/50cm£15.94 Add to
503122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
504112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
505112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
506112139150/0WOODRUFF KEY D=25mm£2.14 Add to
