COVERS DECKEL

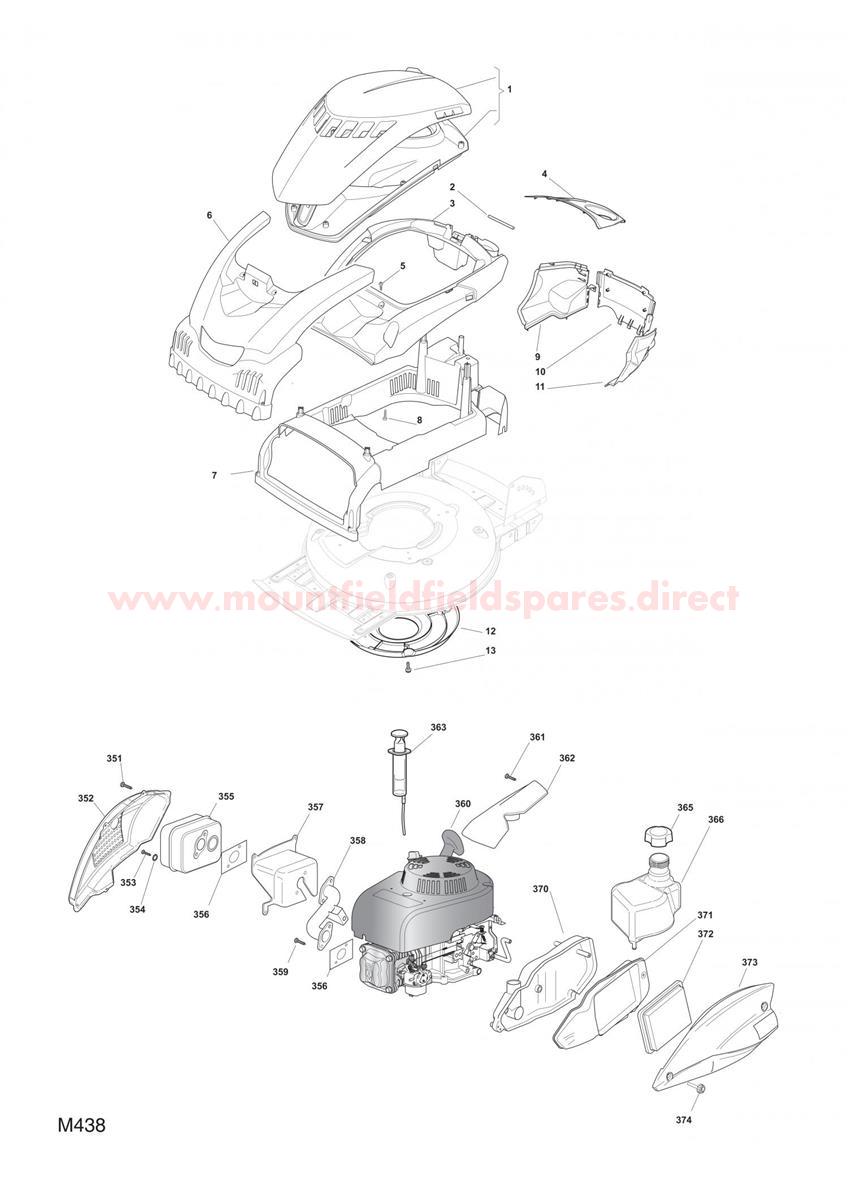

COVERS DECKEL assembly details for Mountfield MULTICLIP504PDQ4S (20100406) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381119702/0UPPER ENGINE COVER [GREY]£57.52 Add to
003322109814/0COVER UPPER RED RAL 3003£31.36 Add to
004322109818/0Cover-blac (OBSOLETE)N/A
005112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
006322109821/0FRONT COVER RED RAL 3003 2008£21.26 Add to
007322109812/0COVER LOWER RED 3003£48.74 Add to
008112728696/0SELF-TAPPING SCREW 4 x 12£2.06 Add to
009322109816/0COVER REAR RIGHT BLACK£10.23 Add to
010322109815/0Cover-rear, blac (OBSOLETE)N/A
011322109817/0Cover-rear, blac (OBSOLETE)N/A
012322060227/0BELT PROTECTION£9.05 Add to
013112728903/0SCREW£1.69 Add to
351112735111/0FLANGED TAPPING SCREW 4.2 x 9.5 WZ£2.18 Add to
352322601005/0MUFFLER PROTECTION£153.32 Add to
353112689590/0HEX HEAD SCREW M6 X 90£5.21 Add to
354112582100/0LOCK WASHER M6£2.06 Add to
355118550269/0MUFFLER£35.71 Add to
356118550270/0MUFFLER GASKET£12.55 Add to
357381750101/0MUFFLER PROTECTION£62.66 Add to
358118738233/0Exhaust tub (OBSOLETE)N/A
359112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
360118550317/0Engine assy (OBSOLETE)N/A
36112728700/0Screw (OBSOLETE)N/A
362322785269/0COVER£15.98 Add to
363118718000/0OIL EMPTYING SYRINGE£16.22 Add to
365BS-692046FUEL CAP OHV£10.71 Add to
366322735150/0FUEL TANK£23.60 Add to
370322785268/0Air cleaner base (OBSOLETE)N/A
371322785267/0COVER 2009£8.42 Add to
372118550257/0PAPER AIR FILTER£12.00 Add to
373322109746/0Air cleaner cove (OBSOLETE)N/A
374381004362/0SCREW£5.21 Add to
