TRANSMISSION

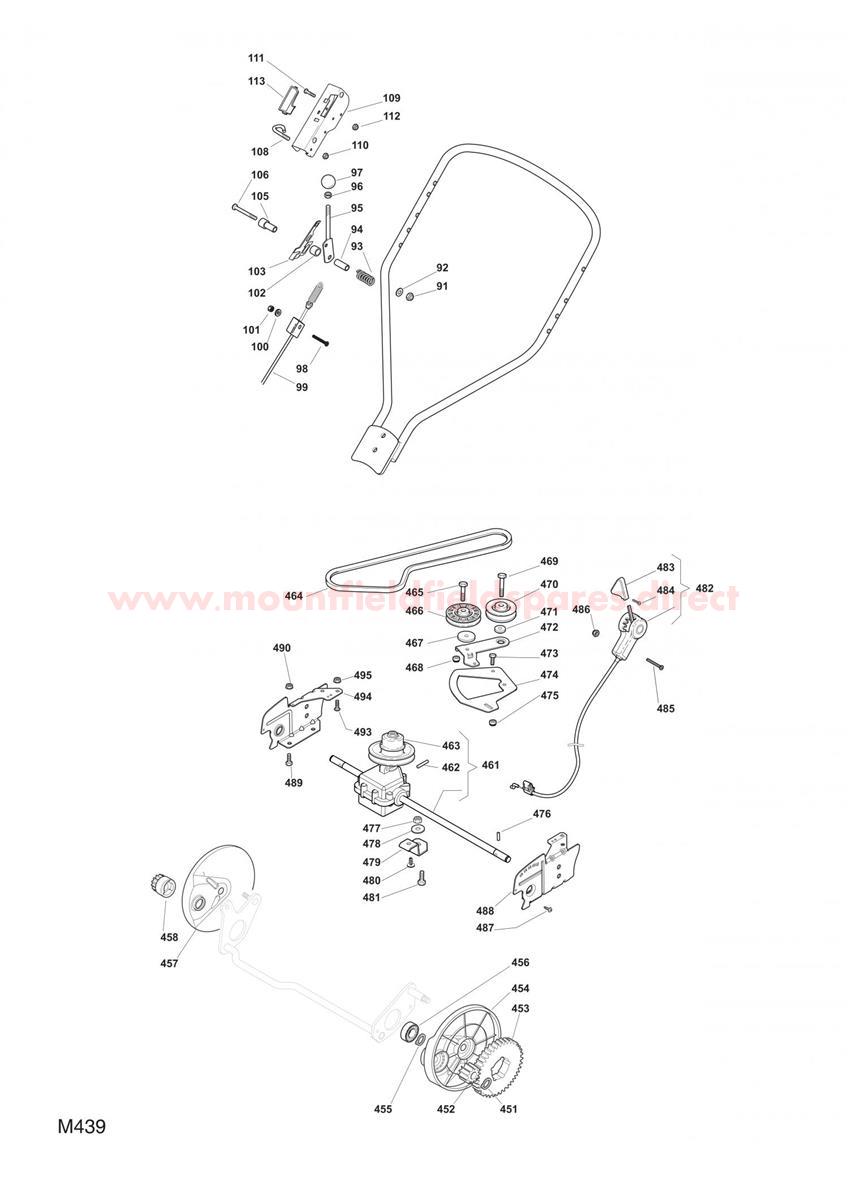

TRANSMISSION assembly details for Mountfield MULTICLIP504PDQ4S (20100406) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
091112292100/0HEXAGON NUT M6£1.47 Add to
092112530060/0SPRING WASHER M6£1.79 Add to
093122450446/0SPRING£2.06 Add to
094122170840/0SPACER£6.32 Add to
095381003313/0CLUTCH DRIVE LEVER£16.22 Add to
096112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
097322399812/0BALL KNOB£3.41 Add to
098112727791/0CROSS-HEAD SCREW M6 x 20£0.79 Add to
099381000745/1CLUTCH DRIVE CABLE G.T.£23.08 Add to
100112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
101112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
10222170843/0Spacer (OBSOLETE)N/A
103322551653/0SUPPORT LEVER PLATE£4.52 Add to
105122170842/0SPACER£2.59 Add to
106112727786/0CROSS-HEAD SCREW M6 x 60£2.32 Add to
108122430314/0PULL CORD GUIDE£6.27 Add to
109381004405/0DASHBOARD£21.26 Add to
110112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
111112727792/0CROSS-HEAD SCREW M6 x 35£2.06 Add to
112112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
113322500050/0DECAL PLATE£2.06 Add to
451112608600/0CIRCLIP D=12£2.08 Add to
452122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
453122120105/1DRIVE GEAR WHEEL£10.82 Add to
454122600092/0RIGHT WHEEL COVER£3.69 Add to
455112608600/0CIRCLIP D=12£2.08 Add to
456119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
457122600093/0LEFT WHEEL COVER£3.69 Add to
458122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
46181003098/0Transmission ass (OBSOLETE)N/A
462112645700/0PIN£2.06 Add to
463122601916/0VARIATOR PULLEY (OBSOLETE)N/A
464135064010/0TRAPEZOIDAL BELT SPZX812£15.13 Add to
465112674701/0SCREW TE M6 x 35£2.06 Add to
466122601914/0BELT GUIDE PULLEY£21.95 Add to
467322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
468112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
469112689500/0SCREW M6 x 40£2.06 Add to
470122601915/0TENSION PULLEY£21.82 Add to
471122671656/0WASHER£6.42 Add to
472322320007/0VARIATOR TENSION ARM£20.04 Add to
473112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
474322806629/0VARIATOR LEVER SUPPORT ZNW MCS 50 4S£25.28 Add to
475112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
476122753000/0PIN D=5.2 x 25.65£2.06 Add to
477112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
478112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
479322551655/0VARIATOR BLOCKING PLATE MCS 50 4S£18.82 Add to
480112728704/1SELF-TAP SCREW K70 x 16£2.06 Add to
481112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
482381007112/04 SPEED CABLE ASSEMBLY£43.53 Add to
483322399809/04 SPEED CABLE KNOB£2.06 Add to
484112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
485112727787/0CROSS-HEAD SCREW M6 x 70£1.91 Add to
486112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
487112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
488322778421/0LEFT FRONT BRACKET£14.45 Add to
489112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
490112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
493112815200/0SCREW TTDQ M6X16£2.06 Add to
494322778419/0RIGHT FRONT BRACKET£14.45 Add to
495112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
