COVERS DECKEL

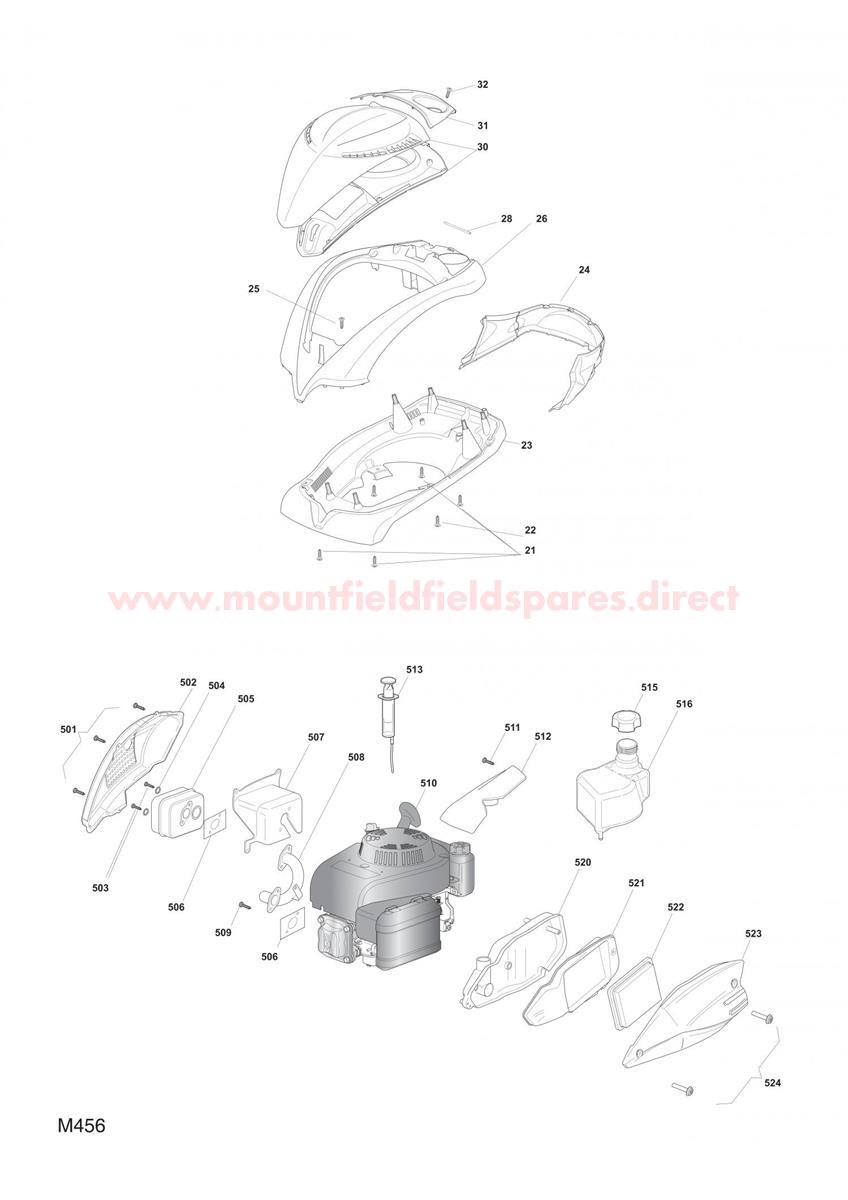

COVERS DECKEL assembly details for Mountfield QUIET514PD (20100406) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
021112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
022112728696/0SELF-TAPPING SCREW 4 x 12£2.06 Add to
023322109806/0COVER LOWER RED£39.73 Add to
024322109808/0REAR COVER BLACK£9.94 Add to
025112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
026322109807/0COVER UPPER RED£39.73 Add to
030381119701/0ENGINE COVER UPPER BLACK£51.65 Add to
031322109809/0Cover, grey (OBSOLETE)N/A
032112728696/0SELF-TAPPING SCREW 4 x 12£2.06 Add to
501112735111/0FLANGED TAPPING SCREW 4.2 x 9.5 WZ£2.18 Add to
502322601007/0MUFFLER PROTECTION£139.79 Add to
503112689590/0HEX HEAD SCREW M6 X 90£5.21 Add to
504112582100/0LOCK WASHER M6£2.06 Add to
505118550269/0MUFFLER£35.71 Add to
506118550270/0MUFFLER GASKET£12.55 Add to
507381750101/0MUFFLER PROTECTION£62.66 Add to
508118738233/0Exhaust tub (OBSOLETE)N/A
509112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
510118550317/0Engine assy (OBSOLETE)N/A
51112728700/0Screw (OBSOLETE)N/A
512322785269/0COVER£15.98 Add to
513118718000/0OIL EMPTYING SYRINGE£16.22 Add to
515BS-692046FUEL CAP OHV£10.71 Add to
516322735150/0FUEL TANK£23.60 Add to
520322785268/0Air cleaner base (OBSOLETE)N/A
521322785267/0COVER 2009£8.42 Add to
522118550257/0PAPER AIR FILTER£12.00 Add to
523322109744/0AIR FILTER COVER£13.97 Add to
524381004362/0SCREW£5.21 Add to
