WHEEL SUSPENSION TRANSMISSION

WHEEL SUSPENSION TRANSMISSION assembly details for Mountfield QUIET514PD (20100406) 2008 model

Parts list

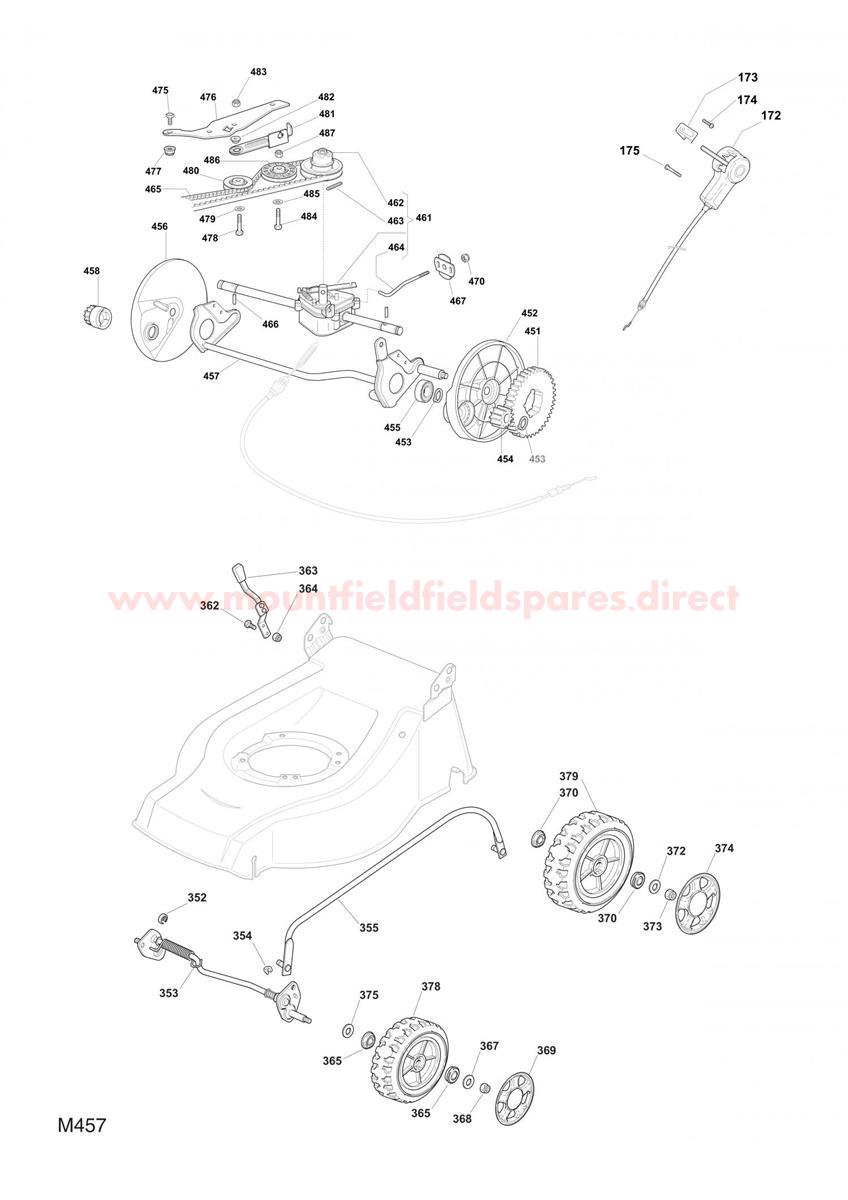

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
172381007110/04 SPEED CABLE ASSEMBLY£42.53 Add to
173322399809/04 SPEED CABLE KNOB£2.06 Add to
174112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
175112728702/0SELF-TAP SCREW WN1451 K50 x 40£2.06 Add to
352122171002/0AXLE SPACER£2.06 Add to
353381000143/1FRONT WHEELS AXLE£28.90 Add to
354112436050/1PIN PLATE D=8£5.21 Add to
35581006483/1Height adjust rod (OBSOLETE)N/A
362112789000/0SCREW TE M5 x 12£2.06 Add to
363381003283/1HEIGHT ADJUST LEVER£27.27 Add to
364112154320/0SELF-LOCKING NUT M5£2.06 Add to
365122122206/0BEARING£2.32 Add to
367112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
368112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
369322110491/0HUB CAP D=170 [GREY]£2.47 Add to
370122122206/0BEARING£2.32 Add to
372112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
373112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
374322110492/0HUB CAP D=210 [GREY]£2.61 Add to
375112530150/0SPRING WASHER M12£1.79 Add to
378381007351/0WHEEL D=170£13.66 Add to
451122120105/1DRIVE GEAR WHEEL£10.82 Add to
452122600093/0LEFT WHEEL COVER£3.69 Add to
453112608600/0CIRCLIP D=12£2.08 Add to
454122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
455119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
456122600092/0RIGHT WHEEL COVER£3.69 Add to
457381000147/0REAR WHEELS AXLE£26.78 Add to
458122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
461181003096/3GEARBOX GT VE2002 EVO+VARIATOR WBH STEEL£137.42 Add to
462122601916/0VARIATOR PULLEY (OBSOLETE)N/A
463112645700/0PIN£2.06 Add to
464122033285/0GEARBOX ADJUSTING ROD 4S£6.14 Add to
465135064010/0TRAPEZOIDAL BELT SPZX812£15.13 Add to
466122753000/0PIN D=5.2 x 25.65£2.06 Add to
467322675113/0VARIATOR CLAMP WASHER£2.06 Add to
470112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
475112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
476112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
477112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
478112689500/0SCREW M6 x 40£2.06 Add to
479112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
480122601915/0TENSION PULLEY£21.82 Add to
481322806623/0PULLEY SUPPORT BRACKET£4.52 Add to
482122671656/0WASHER£6.42 Add to
483112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
484112674700/0SCREW M6 X 35£2.06 Add to
485112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
486122601914/0BELT GUIDE PULLEY£21.95 Add to
487112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
