CHASSIS HANDLE

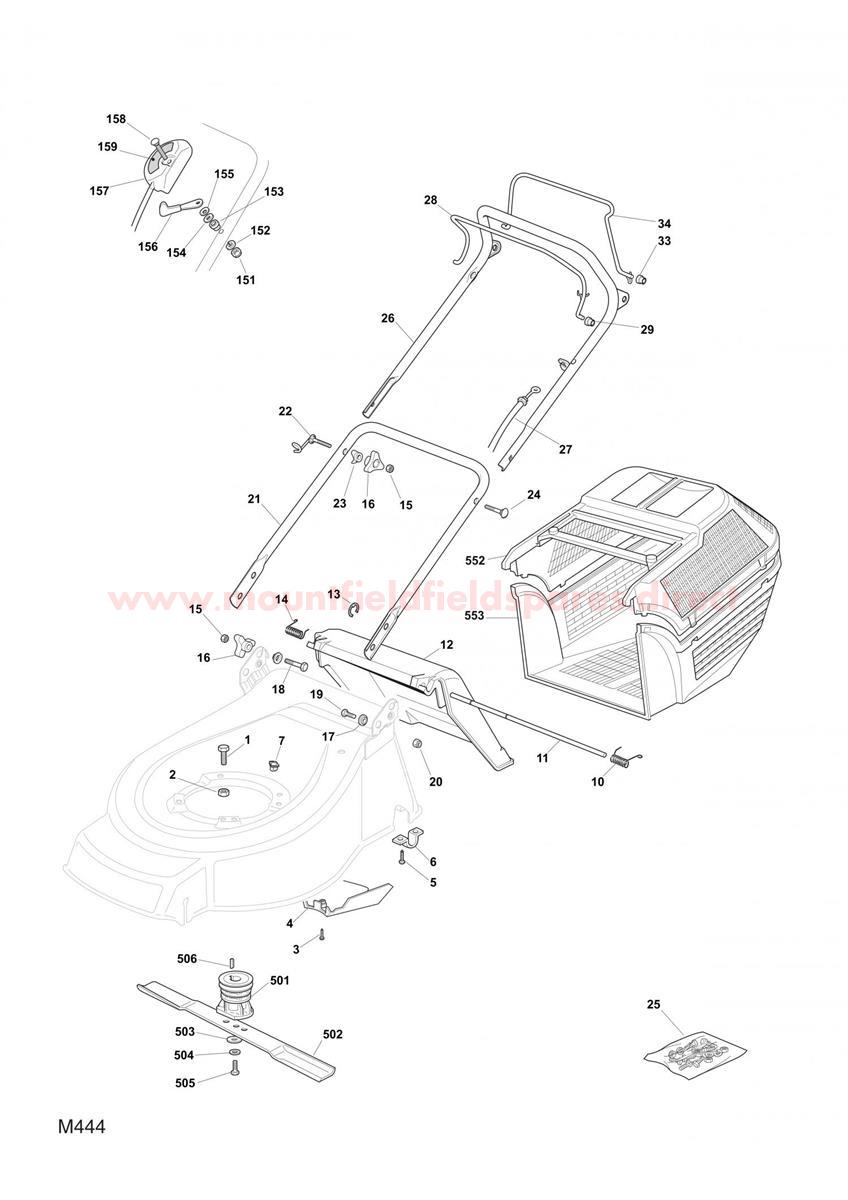

CHASSIS HANDLE assembly details for Mountfield S421PD (20100406) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
001112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
002112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
002112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
003112727791/0CROSS-HEAD SCREW M6 x 20£0.79 Add to
004122060191/1BELT PROTECTION GUARD [TD/L 43]£5.46 Add to
005112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
006322545152/0AXLE BRACKET£2.06 Add to
007322291150/0RUBBER INSERT£2.06 Add to
010122450420/1LH DEFLECTOR SPRING£2.06 Add to
011122517906/1DEFLECTOR ROD£3.96 Add to
01222600046/2DEFLECTOR [BLACK]£21.19 Add to
013112000930/0CIRCLIP D=6£0.79 Add to
014122450410/1RH DEFLECTOR SPRING£2.06 Add to
015112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
016122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
017322041955/0METAL HANDLE BUSH£2.06 Add to
018112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
019112792610/0HEX-HEAD SCREW M8 x 16£2.02 Add to
020112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
021381006512/0LOWER HANDLE [BLACK]£23.72 Add to
022181003801/1BOLT/PULL CORD GUIDE£3.44 Add to
023122680006/1PLASTIC WASHER£1.91 Add to
024112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
025381008614/3SCREW ASSEMBLY KIT£15.41 Add to
026381007024/0UPPER HANDLE [BLACK] (OBSOLETE) (OBSOLETE)N/A
027181000611/0ENGINE BRAKE CABLE£14.32 Add to
028181003291/3ENGINE BRAKE LEVER£14.66 Add to
029122041966/0CONTROL LEVER BUSH£2.06 Add to
033322041965/1DRIVE LEVER BUSH£2.06 Add to
034181003288/1DRIVE CONTROL LEVER£12.00 Add to
151112291000/0HEXAGON NUT M5£2.06 Add to
152112581500/0WASHER M5£2.06 Add to
153122171005/0THROTTLE SPACER£2.06 Add to
154112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
155112508100/0SPRING WASHER 10.2 x 20 x 0.8£2.06 Add to
156381007220/0THROTTLE LEVER£26.18 Add to
157481007080/0THROTTLE CABLE£24.95 Add to
158112815000/0CARRIAGE BOLT M5 x 45£2.06 Add to
159114356702/0THROTTLE DECAL£2.06 Add to
501122465607/4BLADE BOSS D=22.2mm£10.09 Add to
502181004341/3BLADE 41cm£13.77 Add to
503122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
504112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
505112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
506112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
55222486073/0Grass box-upper (OBSOLETE)N/A
553122486074/0LOWER GRASSBOX£26.16 Add to
