Rear Drive

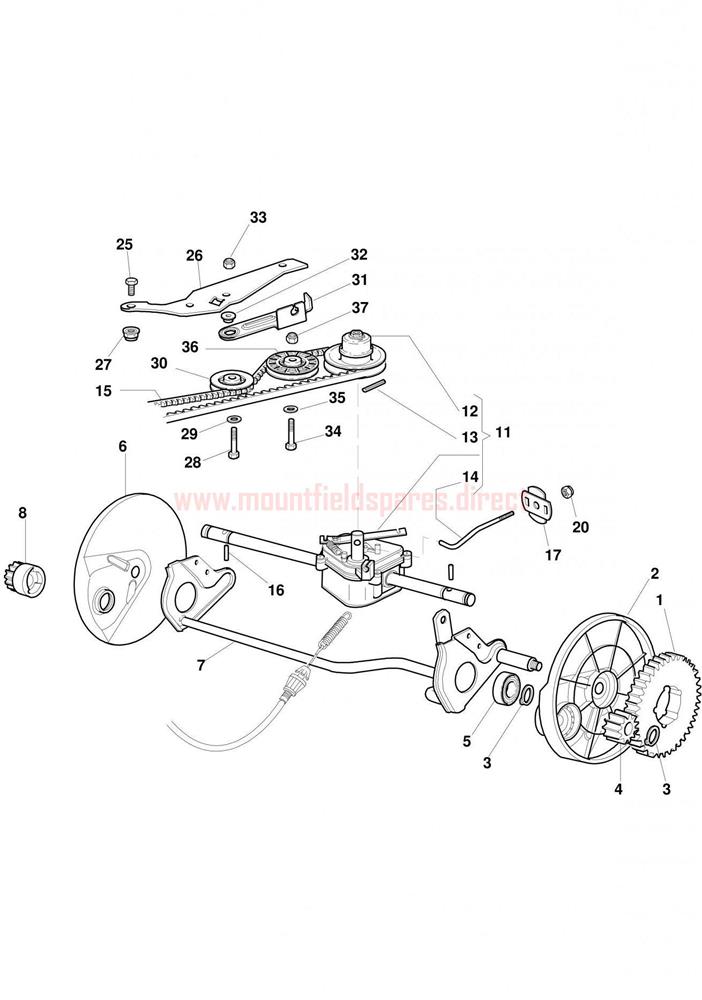

Rear Drive assembly details for Mountfield 464PD (20100409) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001122120105/1DRIVE GEAR WHEEL£10.82 Add to
002122600093/0LEFT WHEEL COVER£3.69 Add to
003112608600/0CIRCLIP D=12£2.08 Add to
004122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
005119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
006122600092/0RIGHT WHEEL COVER£3.69 Add to
007381000147/0REAR WHEELS AXLE£26.78 Add to
008122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
011181003096/3GEARBOX GT VE2002 EVO+VARIATOR WBH STEEL£137.42 Add to
012122601925/0PULLEY£61.56 Add to
013112645700/0PIN£2.06 Add to
014122033285/0GEARBOX ADJUSTING ROD 4S£6.14 Add to
015135064005/0TOOTHED BELT£13.91 Add to
016122753000/0PIN D=5.2 x 25.65£2.06 Add to
017322675113/0VARIATOR CLAMP WASHER£2.06 Add to
020112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
025112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
026322806625/1PULLEY LEVER£6.63 Add to
027112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
028112689500/0SCREW M6 x 40£2.06 Add to
029112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
030122601915/0TENSION PULLEY£21.82 Add to
031322806623/0PULLEY SUPPORT BRACKET£4.52 Add to
032122671656/0WASHER£6.42 Add to
033112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
034112674700/0SCREW M6 X 35£2.06 Add to
035112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
036122601914/0BELT GUIDE PULLEY£21.95 Add to
037112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
