Chassis-Wheels And Height Adjusting

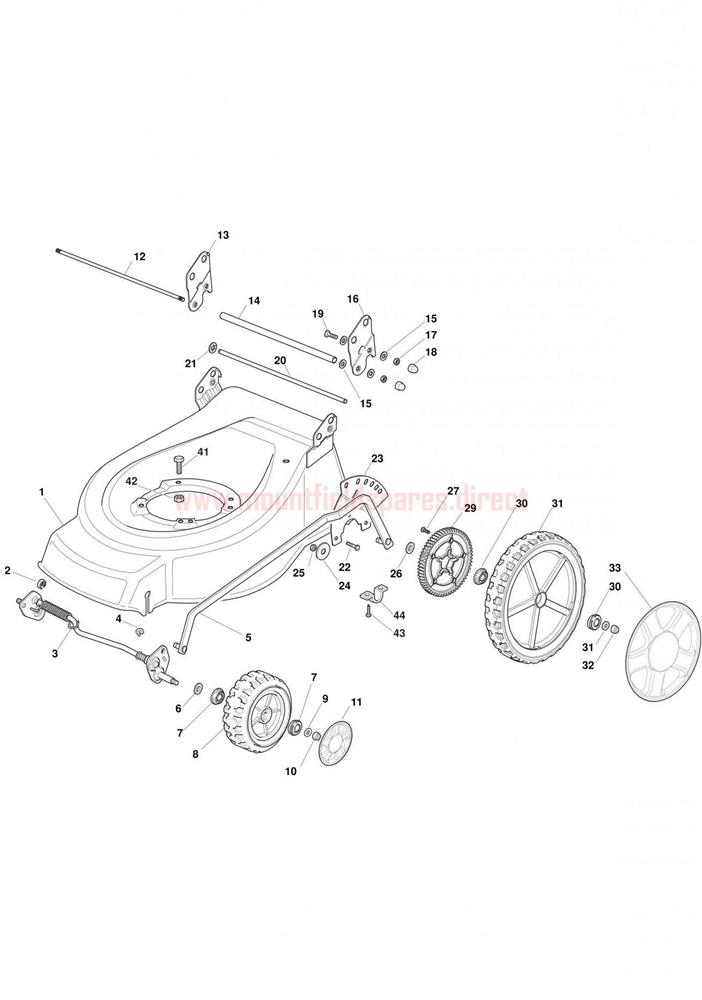

Chassis-Wheels And Height Adjusting assembly details for Mountfield HW514PD (20100408) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381003693/0CHASSIS RED£211.40 Add to
002122171002/0AXLE SPACER£2.06 Add to
003381002859/0FRONT WHEELS AXLE£42.27 Add to
004112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
005381002017/0REAR WHEEL AXLE£30.26 Add to
006112530150/0SPRING WASHER M12£1.79 Add to
007122122206/0BEARING£2.32 Add to
009112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
010112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
011322110348/0HUB CAP D=210 [GREY]£2.61 Add to
01222517702/1LOWER HANDLE FULCRUM PIN TU ROLLER 2009£10.54 Add to
01322778427/0Bracket, R (OBSOLETE)N/A
01422869717/0Spacer (OBSOLETE)N/A
015122671653/0WASHER 8.3 x 20 x 3£2.06 Add to
01622778429/0Bracket, L (OBSOLETE)N/A
017112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
018118203854/0NUT CAP M8 [BLACK]£2.06 Add to
019112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
020122517860/0FULCRUM PIN£9.69 Add to
021112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
022112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
023322735579/1SECTOR HEIGHT ADJUSTMENT£10.23 Add to
024112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
025112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
026122675100/0WASHER D=12.6 x 24 x 0.6£1.91 Add to
027112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
028322120110/0PLASTIC DRIVE GEAR D=300£20.31 Add to
029122122206/0BEARING£2.32 Add to
030381007380/0WHEEL D=300£26.85 Add to
031112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
032112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
033322110511/0HUB CAP D=300 [GREY]£5.12 Add to
041112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
041112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
042112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
042112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
043112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
044322545152/0AXLE BRACKET£2.06 Add to
