Support

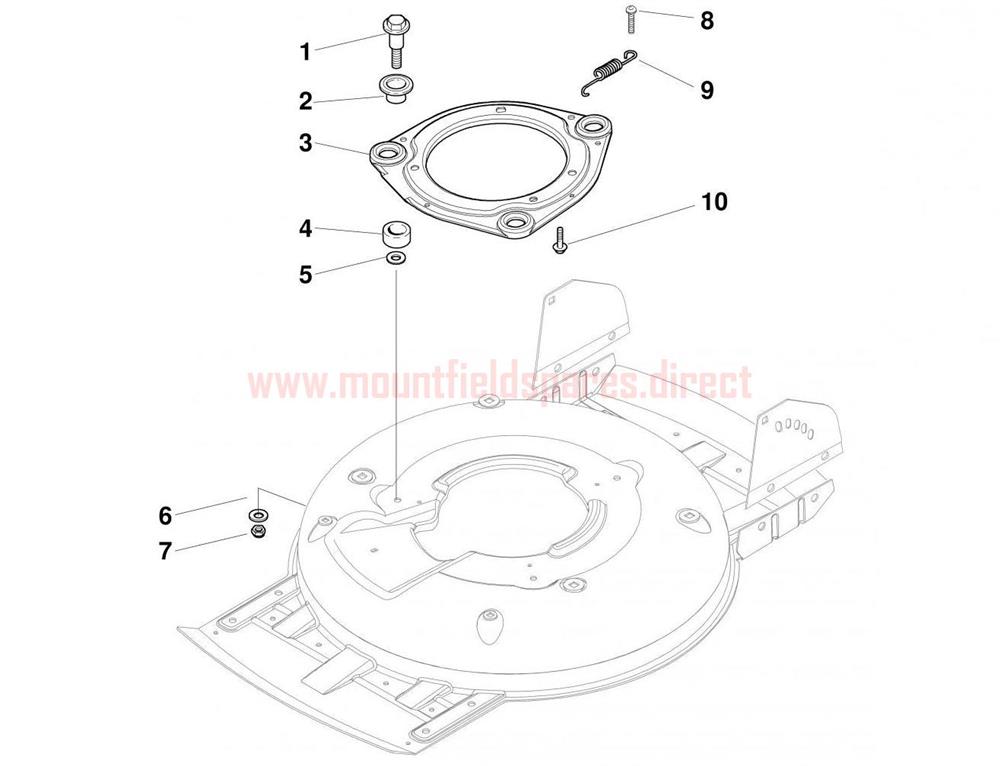

Support assembly details for Mountfield MULTICLIP_INOX_504PD4S (20100401) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001122524329/0HEXAGON BOLT M8£12.68 Add to
002322672201/0RUBBER GROMMET£6.27 Add to
003322207221/1ENGINE MOUNTING PLATE [BLACK] AVS£23.45 Add to
003381207225/1ENGINE MOUNTING [YELLOW]£34.18 Add to
003381207221/1ENGINE MOUNTING PLATE AVS [YELLOW] MCS50£32.99 Add to
004322250012/0AVS RUBBER DAMPER£9.00 Add to
005122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
006112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
007112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
008112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
009122450444/0SPRING£2.87 Add to
010112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
