Chassis

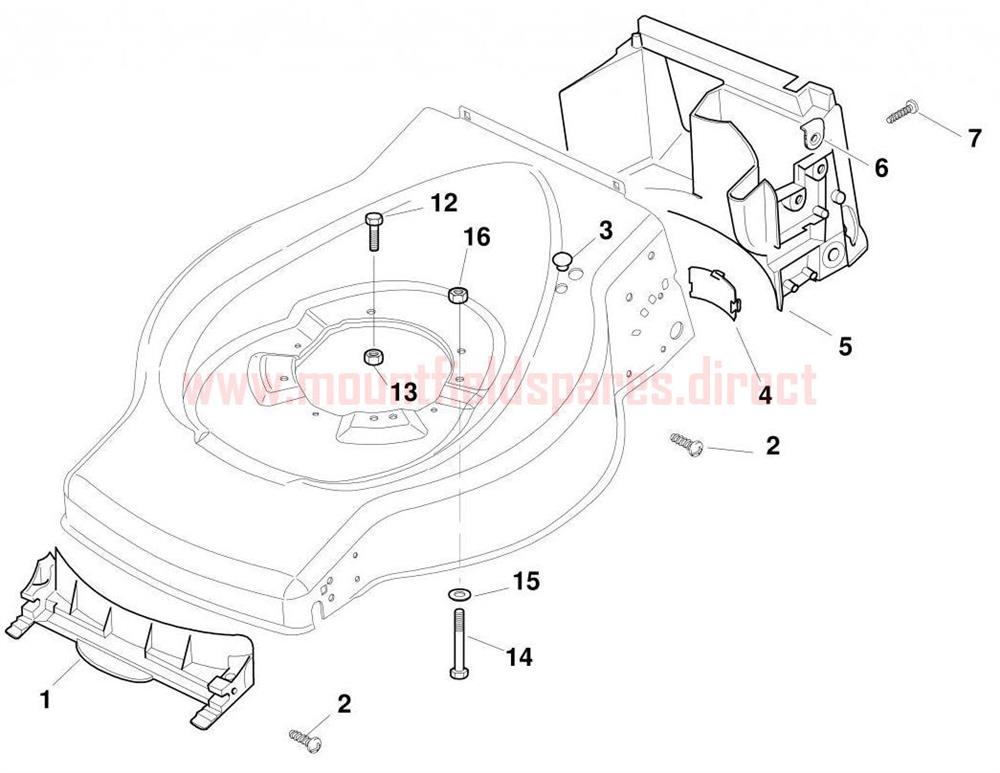

Chassis assembly details for Mountfield MIPL2010_20100308_HP184 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322108271/0PLASTIC FRONT BAFFLE£13.91 Add to
002112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
003322820077/0PVC DECK CAP£6.01 Add to
004322109532/0GEARBOX COVER£1.79 Add to
005322108272/2PLASTIC REAR BAFFLE£19.22 Add to
006322545189/0HANDLE FIXING PLATE£2.06 Add to
007112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
012112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
013112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
014112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
015112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
016112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
