Handle, Lower Part

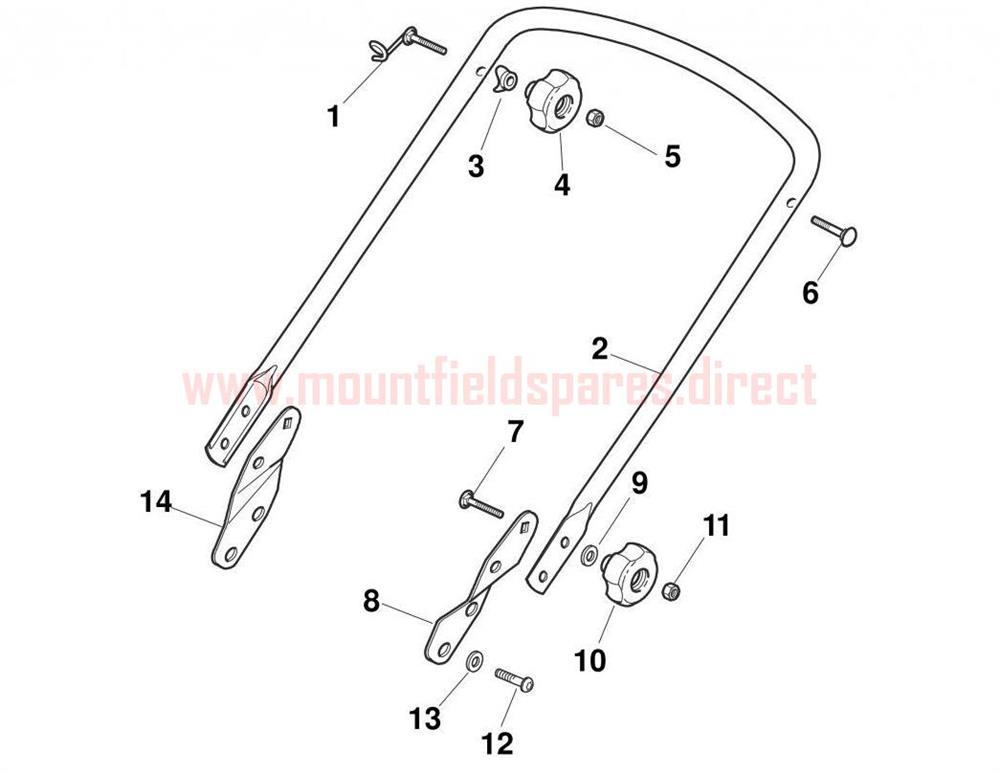

Handle, Lower Part assembly details for Mountfield MIPL2010_20100310_SP474 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	181003801/1	BOLT/PULL CORD GUIDE	£3.44	Add to
002	381006576/0	LOWER HANDLE [BLACK]	£42.53	Add to
003	122680006/1	PLASTIC WASHER	£1.91	Add to
004	122399900/0	3 SPOKE HANDWHEEL [BLACK]	£2.06	Add to
005	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
006	112819201/0	CARRIAGE BOLT M8 x 60	£3.15	Add to
007	112818900/0	SCREW TTDQ M8 x 35	£1.97	Add to
008	322778425/0	LEFT LOWER HANDLE BRACKET	£10.36	Add to
009	122671653/0	WASHER 8.3 x 20 x 3	£2.06	Add to
010	122399900/0	3 SPOKE HANDWHEEL [BLACK]	£2.06	Add to
011	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
012	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
013	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
014	322778423/0	RIGHT LOWER HANDLE BRACKET	£11.43	Add to
