Handle, Lower Part

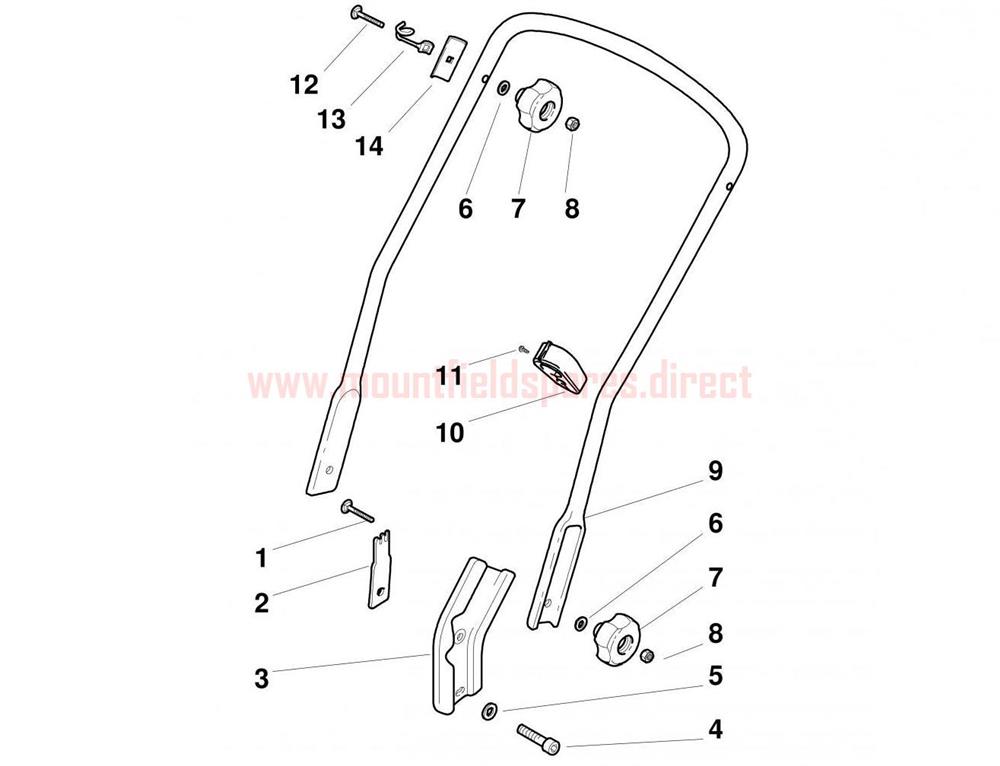

Handle, Lower Part assembly details for Mountfield MIPL2010_20100311_SP555 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112820655/0	SCREW TTDQ 1/4" x 2 1/4"	£1.79	Add to
002	322551635/0	ATTACHMENT PLATE	£4.23	Add to
003	322778405/0	LOWER HANDLE SUPPORT CLAMP	£24.95	Add to
004	112760515/0	HEXAGONAL SCREW TC M8 x 20	£0.79	Add to
005	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
006	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
006	181002244/0	FABRIC BOX EP/TU45 "STIGA"	£87.07	Add to
007	322399810/0	HANDWHEEL w/o NUT [BLACK]	£8.73	Add to
008	112361005/0	HEXAGON NUT 1/4" UNC	£2.71	Add to
009	381006613/0	LOWER PRO HANDLE TURBO 50-55 BLACK	£39.80	Add to
010	322192001/0	CABLE CLAMP	£2.06	Add to
011	112728706/0	SELF-TAPPING SCREW K40 x 16	£2.06	Add to
012	112820655/0	SCREW TTDQ 1/4" x 2 1/4"	£1.79	Add to
013	122430311/0	PULL CORD GUIDE	£6.87	Add to
014	322545137/0	HANDLE CLAMP PLATE	£2.06	Add to
