Chassis-Wheels And Height Adjusting

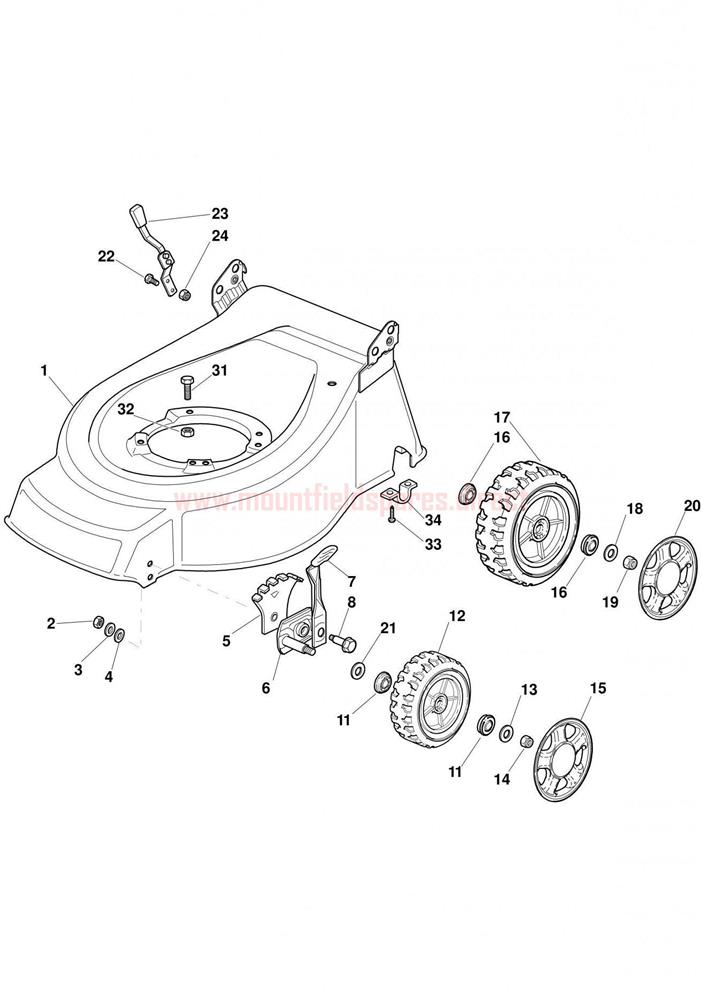

Chassis-Wheels And Height Adjusting assembly details for Mountfield MIPL2010_20100312_S422PD 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381003981/0Deck Grey 434 (OBSOLETE)N/A
002112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
003112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
004112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
005322735547/0HEIGHT ADJUST QUADRANT£2.61 Add to
006381005082/0STUB AXLE£6.69 Add to
007481003285/1HEIGHT ADJUST LEVER£9.54 Add to
008122519811/0WHEEL BOLT£2.06 Add to
011122122206/0BEARING£2.32 Add to
012381007351/0WHEEL D=170£13.66 Add to
013112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
014112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
015322110381/0HUB CAP D=170 [GREY]£3.69 Add to
016122122206/0BEARING£2.32 Add to
01781007345/0Wheel, Stiga ECO Ø 210 (OBSOLETE)N/A
018112369500/0SPRING WASHER D=8£1.79 Add to
019112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
020322110382/0HUB CAP D=210 [GREY]£4.27 Add to
021112530150/0SPRING WASHER M12£1.79 Add to
022112789000/0SCREW TE M5 x 12£2.06 Add to
023381003279/2HEIGHT ADJUST LEVER£27.27 Add to
024112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
031112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
031112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
032112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
032112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
033112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
034322545152/0AXLE BRACKET£2.06 Add to
