Handle, Lower Part

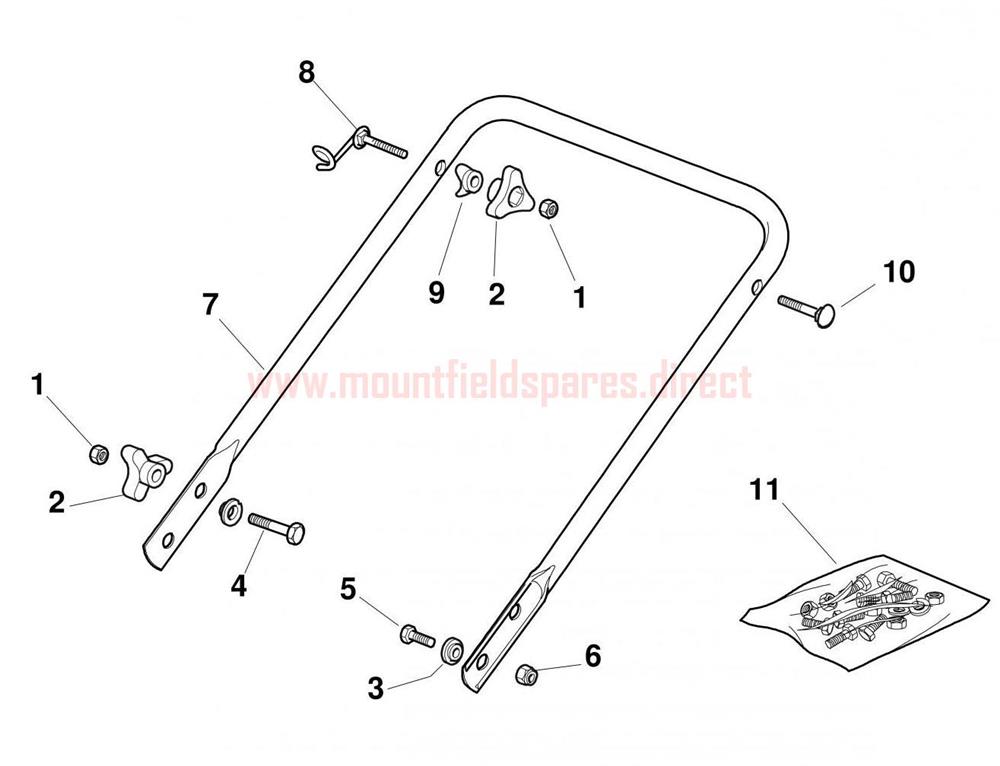

Handle, Lower Part assembly details for Mountfield MIPL2010_20100329_S420HP 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
002	122399900/0	3 SPOKE HANDWHEEL [BLACK]	£2.06	Add to
003	322041955/0	METAL HANDLE BUSH	£2.06	Add to
004	112793701/0	HEX-HEAD SCREW M8 x 30	£1.76	Add to
005	112792610/0	HEX-HEAD SCREW M8 x 16	£2.02	Add to
006	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
007	381006512/0	LOWER HANDLE [BLACK]	£23.72	Add to
008	181003801/1	BOLT/PULL CORD GUIDE	£3.44	Add to
009	122680006/1	PLASTIC WASHER	£1.91	Add to
010	112819201/0	CARRIAGE BOLT M8 x 60	£3.15	Add to
011	381008614/3	SCREW ASSEMBLY KIT	£15.41	Add to
