Blade

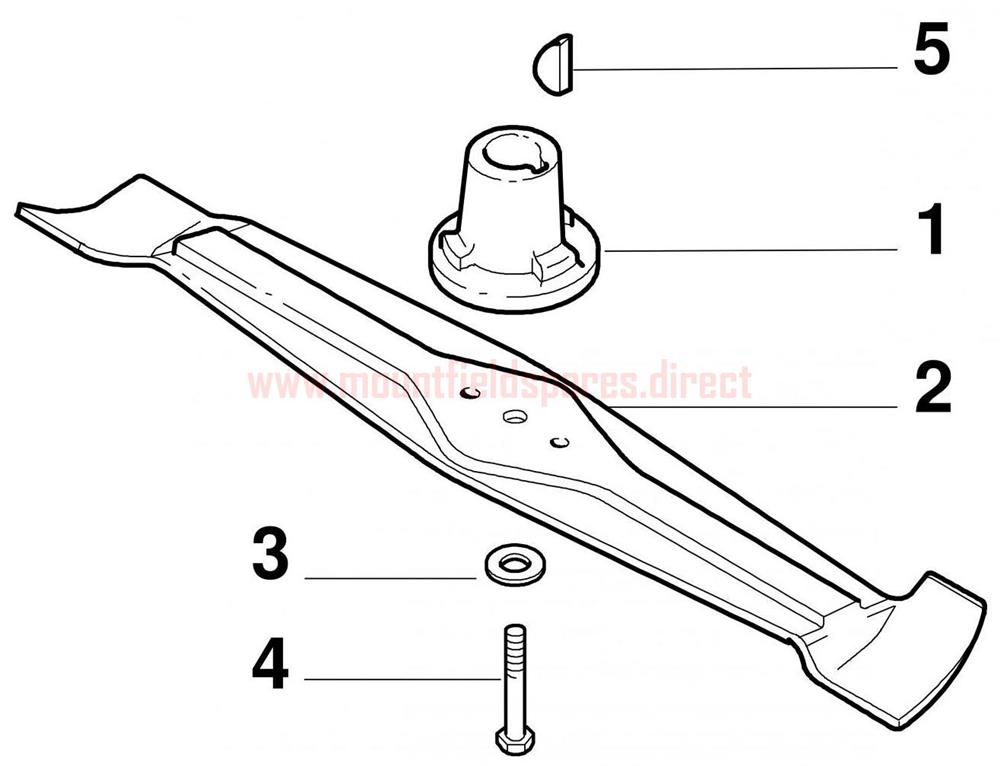

Blade assembly details for Mountfield MIPL2010_20100330_M554R 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001122465618/0BLADE BOSS D=22.2£9.68 Add to
002181004144/0BLADE TURBO 55£29.24 Add to
003112530140/0WASHER M10£2.32 Add to
004112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
005112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
