Deck And Height Adjusting

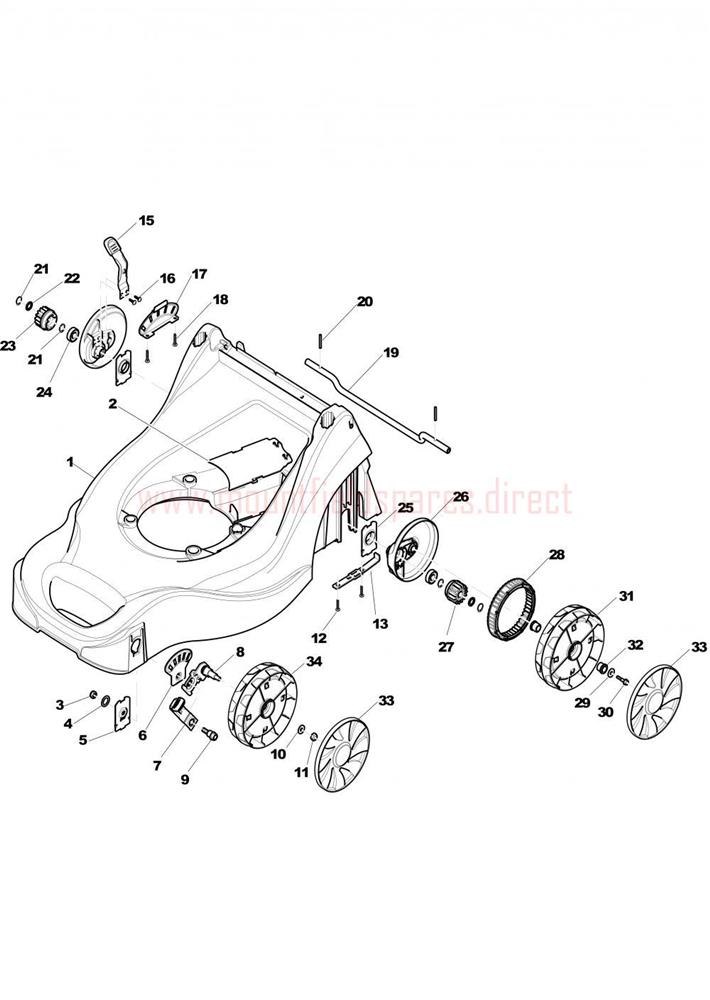

Deck And Height Adjusting assembly details for Mountfield M411PD (20110215) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322066750/0PLASTIC DECK [RED] EP414£77.95 Add to
002322060245/0BELT PROTECTION GUARD EP41£3.69 Add to
003112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
004112540060/0SERRATED LOCK WASHER M8£2.06 Add to
005322785361/0SUPPORT PLATE£2.54 Add to
006322735599/0HEIGHT ADJUST QUADRANT£4.52 Add to
007381003352/0HEIGHT ADJUST LEVER£7.41 Add to
008381005089/0STUB AXLE£7.05 Add to
009122519811/0WHEEL BOLT£2.06 Add to
010112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
011112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
012112728690/0SELF-TAP SCREW KA50 x 25£0.79 Add to
013322608563/0REAR BRACKET£3.00 Add to
015381003353/0HEIGHT ADJUST LEVER£7.10 Add to
016112728689/0SCREW KA50 x 12£1.79 Add to
017322735601/0HEIGHT ADJUST QUADRANT£3.41 Add to
018112728690/0SELF-TAP SCREW KA50 x 25£0.79 Add to
019122033417/0REAR WHEELS AXLE£16.50 Add to
020122753001/0PIN D=4 x 32£2.06 Add to
021112608600/0CIRCLIP D=12£2.08 Add to
022112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
023322570135/0RIGHT PINION GEAR£4.23 Add to
024119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
025322785379/0AXLE SUPPORT PLATE£2.54 Add to
026322600203/0INNER WHEEL COVER D=175£5.73 Add to
027322570136/0LEFT PINION GEAR£4.23 Add to
028322120118/0PLASTIC DRIVE GEAR D=175£11.32 Add to
029112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
030112735592/0SELF-TAP SCREW M6 x 20£2.06 Add to
031381007475/0WHEEL c/w BUSH D=175mm£6.95 Add to
032322034516/0WHEEL BUSH D=175£2.06 Add to
033322110642/0HUB CAP D=175 [GREY]£2.74 Add to
034322686100/0DELTA WHEEL D=175£6.69 Add to
