Handle, Lower Part

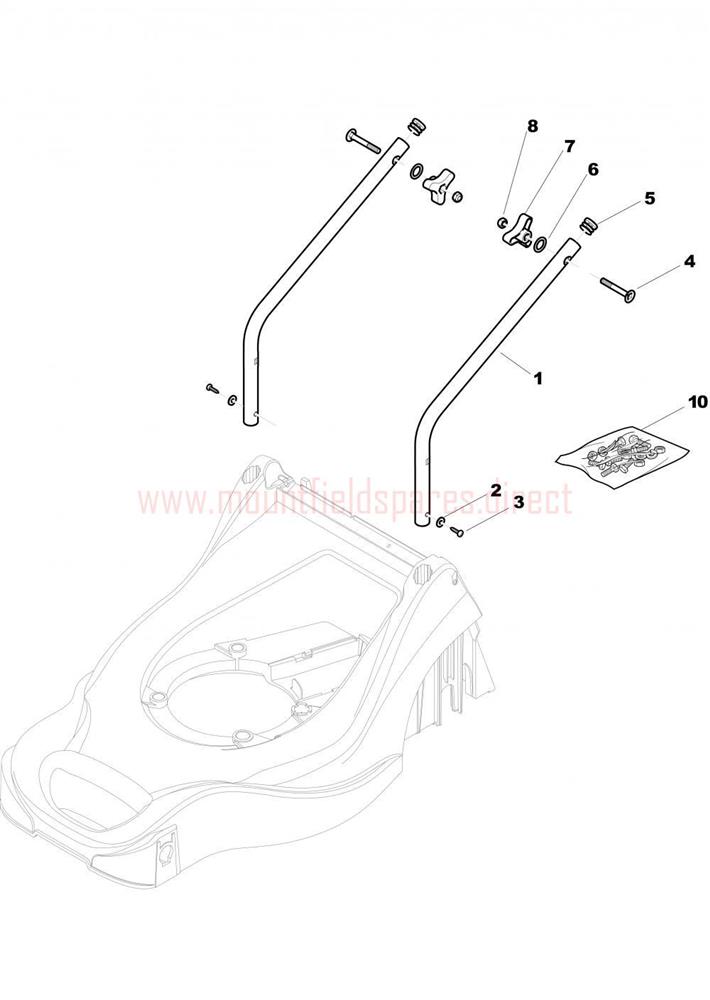

Handle, Lower Part assembly details for Mountfield M411PD (20110215) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006769/0R/H-L/H LOWER HANDLE [BLACK]£10.40 Add to
002112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
003112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
004112819110/0CARRIAGE BOLT M8 x 50£2.02 Add to
005118566110/0HANDLE CAP D=22 [BLACK]£2.06 Add to
006122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
007122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
008112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
010381008687/0HANDLE SCREWS KIT£8.73 Add to
