Handle, Lower Part

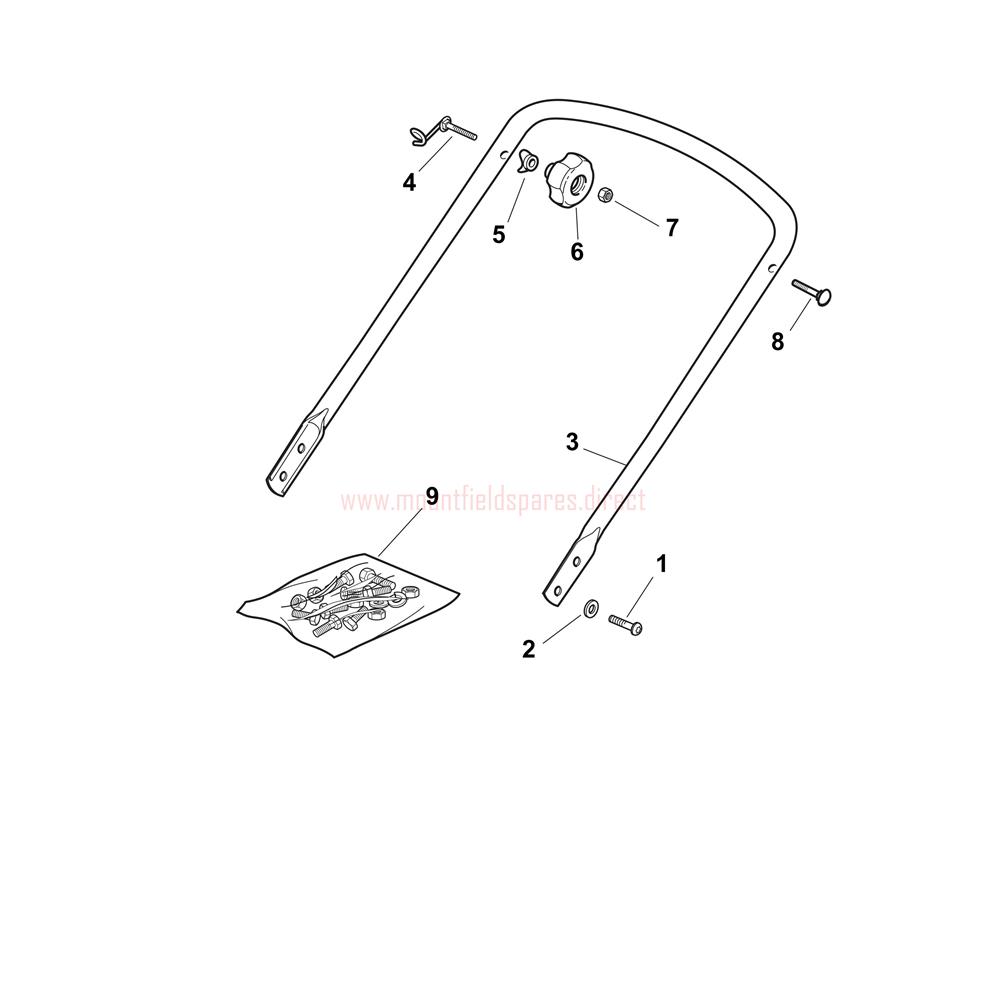

Handle, Lower Part assembly details for Mountfield HP454 (20121602) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
002112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
003381006686/0LOWER HANDLE£51.60 Add to
004181003801/1BOLT/PULL CORD GUIDE£3.44 Add to
005122680006/1PLASTIC WASHER£1.91 Add to
006122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
007112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
008112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
009381008648/1SCREW ASSEMBLY KIT£13.91 Add to
