Blade

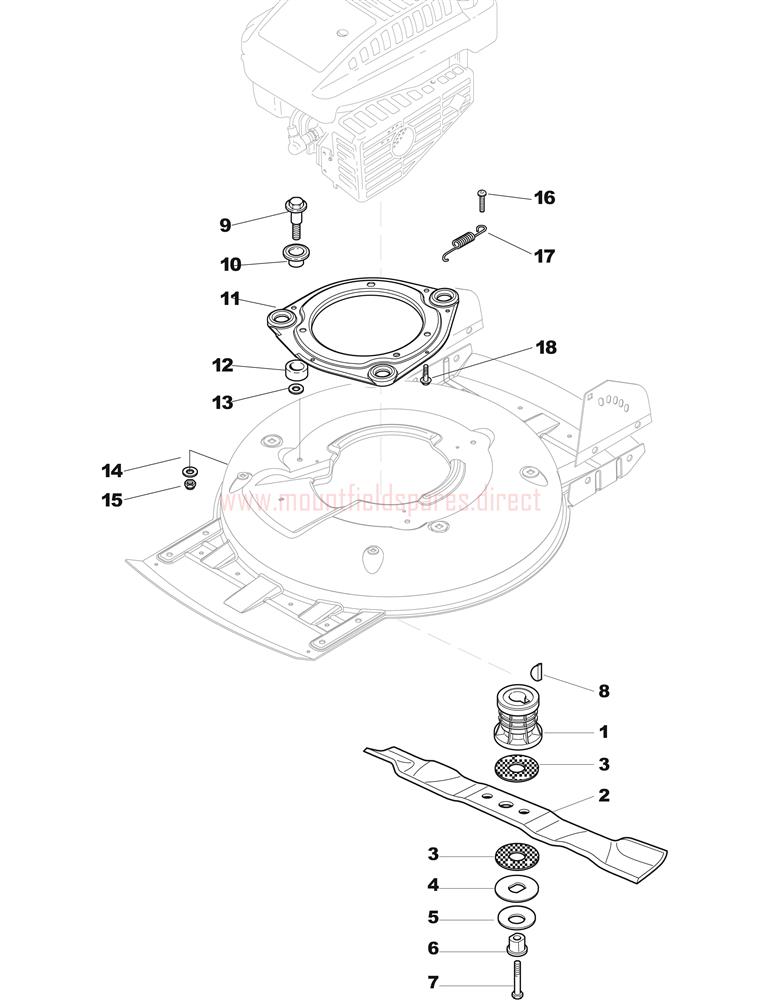

Blade assembly details for Mountfield MULTICLIP500PD (20121602) 2012 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	122465611/0	BLADE BOSS D=22	£16.16	Add to
002	181004146/0	MULTICLIP BLADE 48/50cm	£15.94	Add to
003	322672110/1	FRICTION WASHER 18.3 x 60 x 1.5	£1.91	Add to
004	322672105/0	BLADE WASHER 60 x 18 x 2	£1.91	Add to
005	112508120/0	SPRING WASHER 18.4 x 50 x 2	£3.72	Add to
006	122041940/0	METAL BUSH 25 x 19 x 15	£5.87	Add to
007	112736850/0	HEX-HEAD SCREW 3/8" x 2½"	£2.32	Add to
008	112139100/0	WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40	£2.06	Add to
009	122524329/0	HEXAGON BOLT M8	£12.68	Add to
010	322672201/0	RUBBER GROMMET	£6.27	Add to
011	322207225/0	ENGINE MOUNTING PLATE [BLACK] AVS	£21.90	Add to
012	322250012/0	AVS RUBBER DAMPER	£9.00	Add to
013	122671651/0	WASHER 8.3 x 22 x 2	£2.32	Add to
014	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
015	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
016	112791400/0	SCREW TE M6x20 UNI 5739 ACC.4.8	£1.79	Add to
017	122450444/0	SPRING	£2.87	Add to
018	112735108/1	TELF-FORM SCREW 3/8" X 1¼" UNC	£2.57	Add to
