Blade

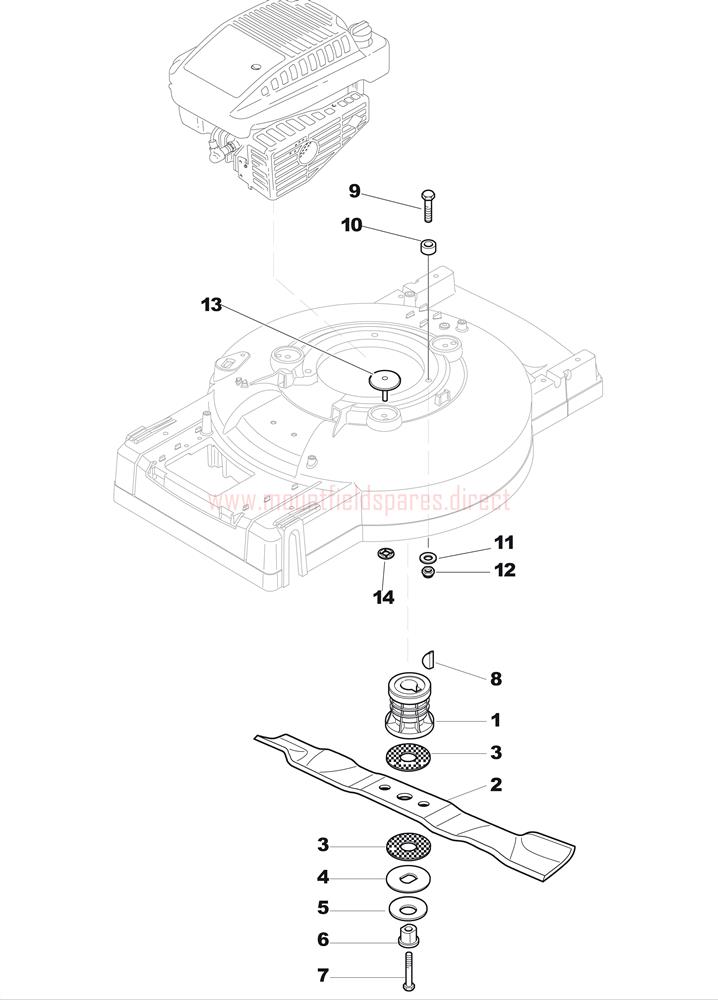

Blade assembly details for Mountfield MULTICLIP530PD (20121602) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001122465632/0FRICTION BLADE BOSS D=25£13.64 Add to
0021111-9132-01MULTICLIP FRICTION BLADE 51cm£25.44 Add to
003322672110/1FRICTION WASHER 18.3 x 60 x 1.5£1.91 Add to
004322672105/0BLADE WASHER 60 x 18 x 2£1.91 Add to
005112508120/0SPRING WASHER 18.4 x 50 x 2£3.72 Add to
006122041940/0METAL BUSH 25 x 19 x 15£5.87 Add to
007112736850/0HEX-HEAD SCREW 3/8" x 2½"£2.32 Add to
008112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
009112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
009112692080/0HEX-HEAD SCREW M8 x 90£2.06 Add to
010122170835/0ENGINE SPACER£6.63 Add to
011112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
013322820057/0DECK CLOSING CAP [BLACK]£2.06 Add to
014112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
