Wheels and Hub Caps

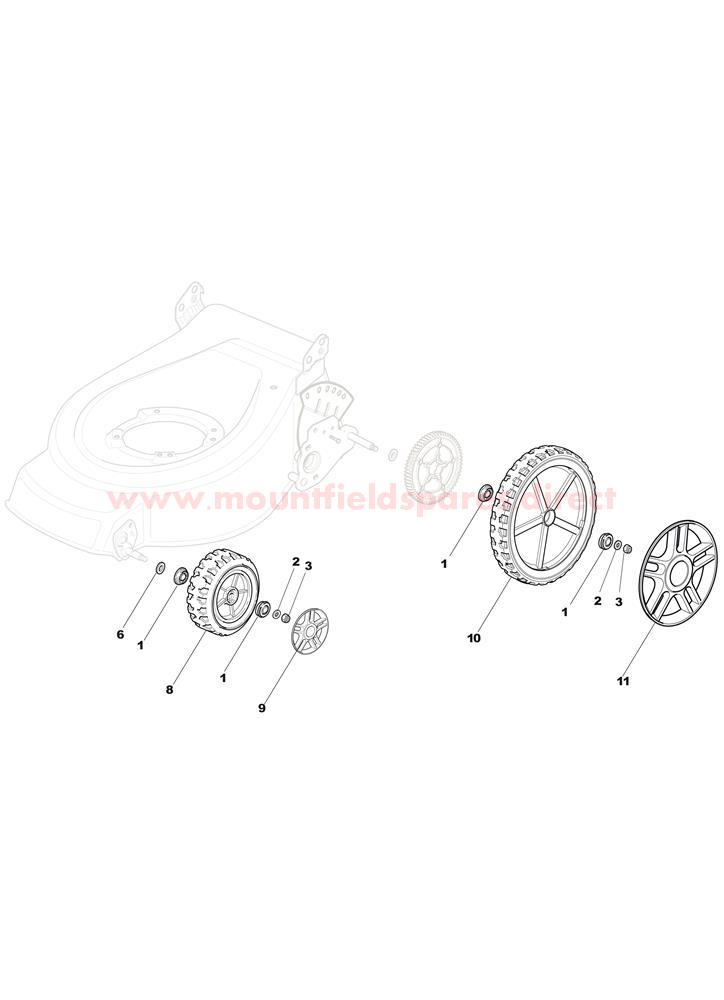

Wheels and Hub Caps assembly details for Mountfield SP534HWBBC (20121602) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001122122206/0BEARING£2.32 Add to
002112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
003112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
006112530150/0SPRING WASHER M12£1.79 Add to
008381007390/2WHEEL ASSEMBLY D=210 [ECO]£17.72 Add to
009322110492/0HUB CAP D=210 [GREY]£2.61 Add to
010381007380/0WHEEL D=300£26.85 Add to
011322110560/0HUB CAP BETA D=300 GREY RAL 9022£5.06 Add to
