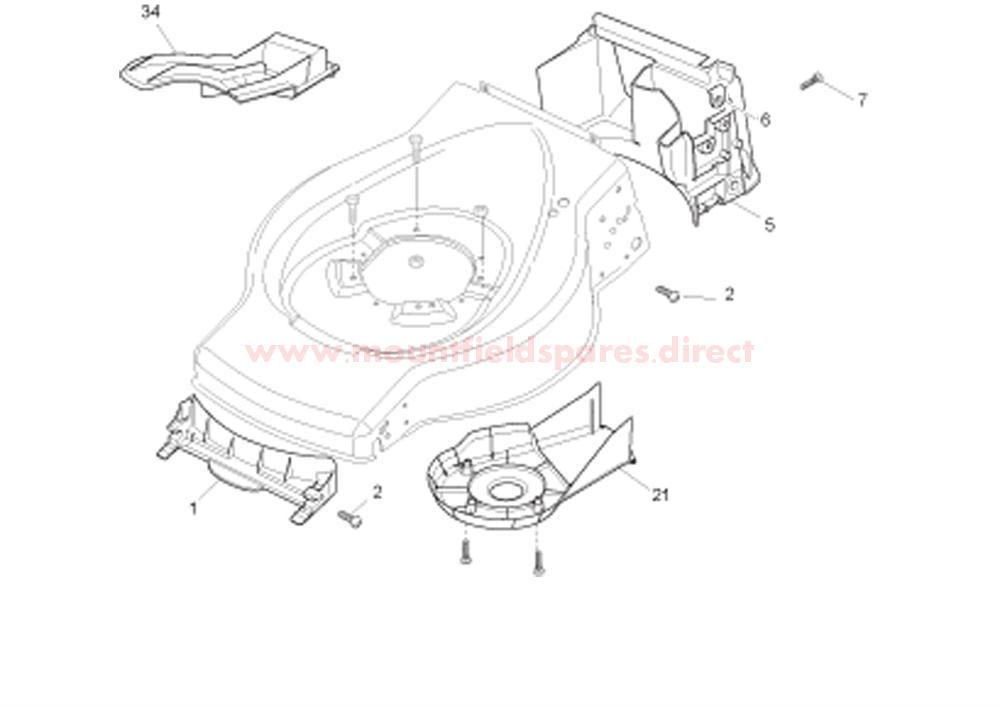

Front Conveyor Assy

Front Conveyor Assy assembly details for Mountfield SP536 (20130205) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322108271/0PLASTIC FRONT BAFFLE£13.91 Add to
002112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
005322108272/2PLASTIC REAR BAFFLE£19.22 Add to
006322545189/0HANDLE FIXING PLATE£2.06 Add to
007112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
008112728903/0SCREW£1.69 Add to
021322060222/0BELT PROTECTION GUARD [ES53 TR]£9.28 Add to
034322140233/0MULCHING PLUG [ES53]£20.58 Add to
