Handle, Upper Part

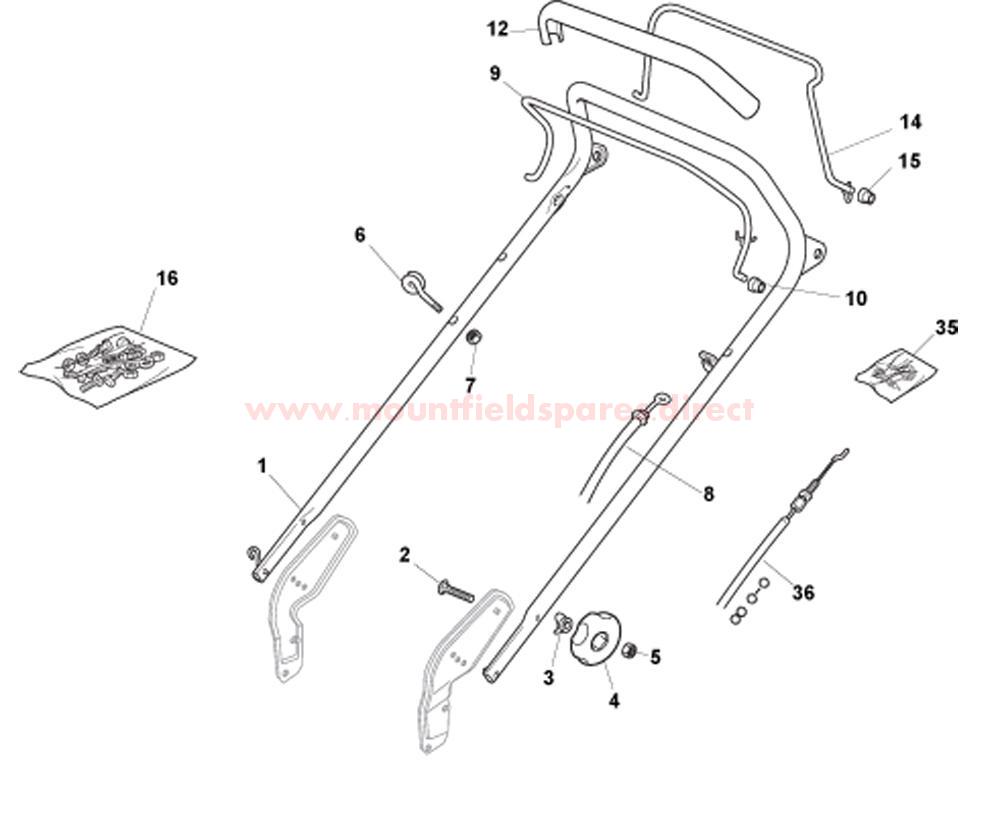

Handle, Upper Part assembly details for Mountfield AL511PD (20140108) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006861/0UPPER HANDLE [BLACK]£49.34 Add to
002112819121/0CARRIAGE BOLT M8 X 55£1.96 Add to
003122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
004122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
005112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
006122430309/0PULL CORD GUIDE£2.87 Add to
007112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
008181000616/1ENG.BRAKE CABLE ERGO HANDLE X=1125 Y=173£14.05 Add to
009181003291/3ENGINE BRAKE LEVER£14.66 Add to
010122041966/0CONTROL LEVER BUSH£2.06 Add to
012122291050/0HANDLE GRIP [BLACK]£14.58 Add to
014181003288/1DRIVE CONTROL LEVER£12.00 Add to
015322041965/1DRIVE LEVER BUSH£2.06 Add to
016381008610/1SCREW ASSEMBLY KIT£12.00 Add to
035381008609/0SCREW KIT£2.06 Add to
036381000669/0CLUTCH DRIVE CABLE£19.50 Add to
036381000673/0CLUTCH DRIVE CABLE£20.04 Add to
