Rear Drive

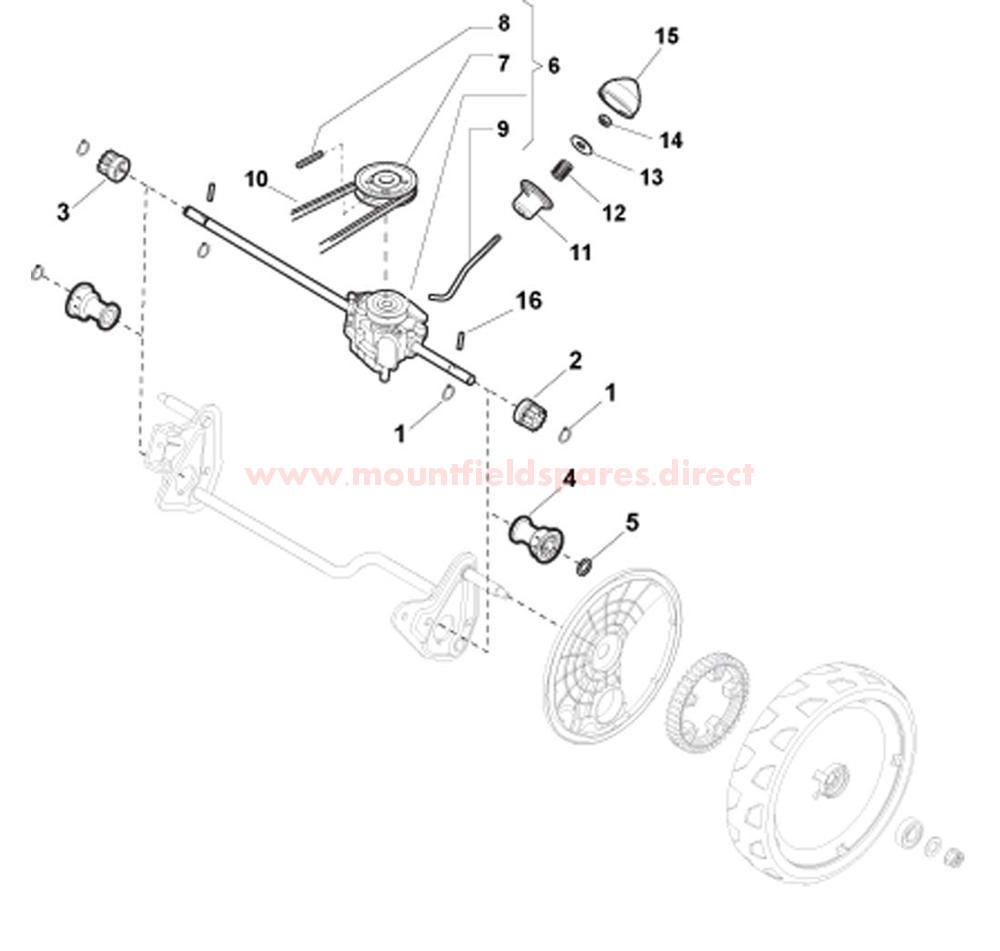

Rear Drive assembly details for Mountfield S461PD (20140108) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112608600/0CIRCLIP D=12£2.08 Add to
002122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
003122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
004322042066/0AXLE BUSH£1.91 Add to
005112521371/0WASHER M12 13 x 20 x 2£2.06 Add to
006181003092/0GEARBOX [BLACK]£114.74 Add to
007122601909/0PULLEY£6.01 Add to
008112645705/0ROLL PIN D=5 x 32£2.02 Add to
009122033283/0GEARBOX ADJUSTING ROD£5.05 Add to
010135063800/0TRAPEZOIDAL BELT Z 27 LP=710(BRONZE GEAR)£11.01 Add to
011122041957/1SPRING GUIDE BUSH£2.06 Add to
012122450063/0SPRING£2.06 Add to
013322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
014112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
015122110230/0HUB COVER£2.06 Add to
016122753000/0PIN D=5.2 x 25.65£2.06 Add to
