Deck And Height Adjusting

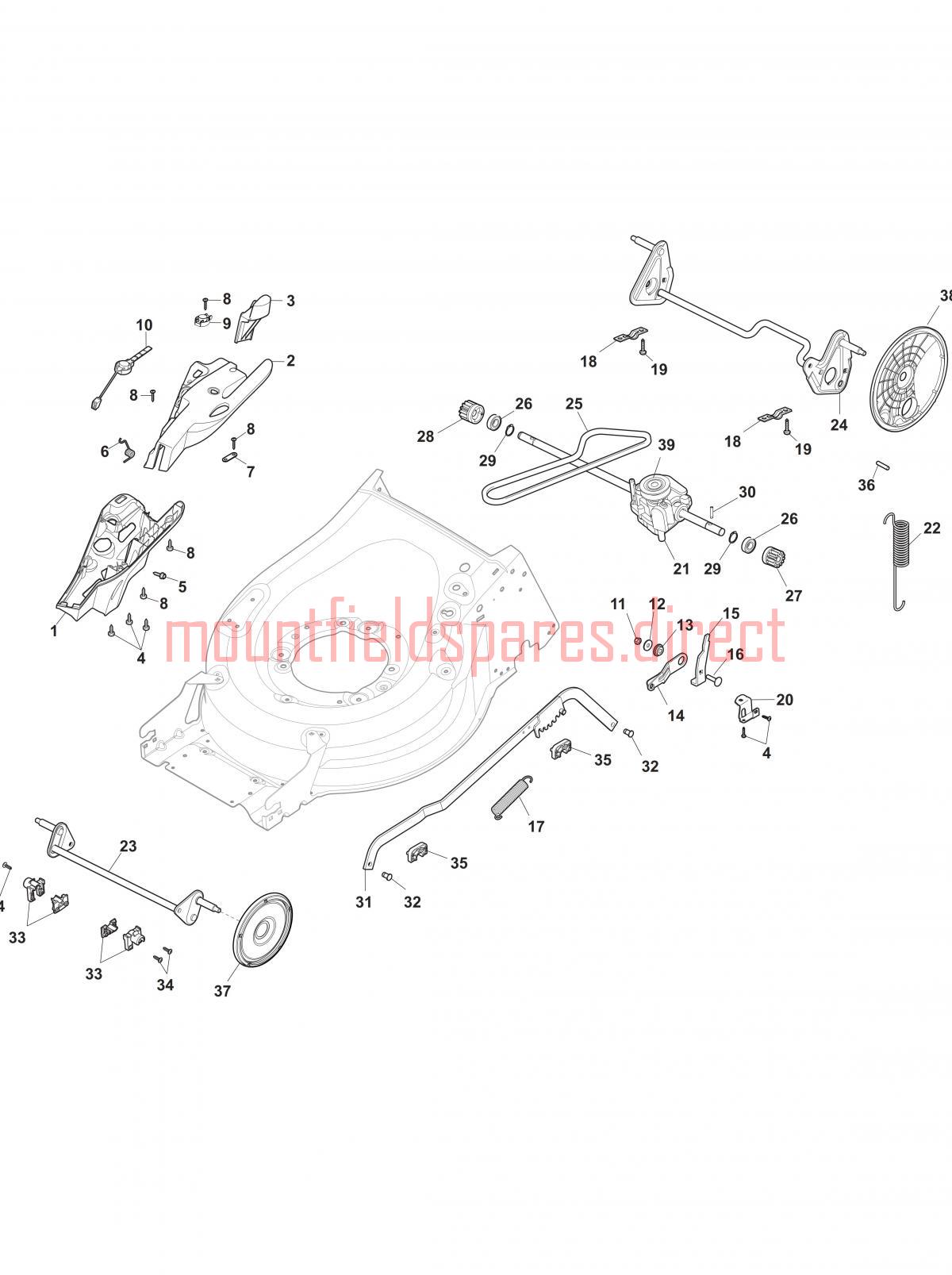

Deck And Height Adjusting assembly details for Mountfield HW531-PD-294556843-M16 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322055264/0LOWER COVER [BLACK]£8.44 Add to
002322055265/0UPPER COVER [BLACK]£9.10 Add to
003322602026/0CONTROL BUTTON [YELLOW]£3.69 Add to
004112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
005125943004/0FLANGED SCREW TE 4.8£1.91 Add to
006122450477/0SPRING£1.91 Add to
007322981471/1FIX PLATE£2.06 Add to
008112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
009322602027/0LENS£2.18 Add to
010322602028/0HEIGHT ADJUST DECAL£2.06 Add to
011112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
012112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
013122517873/0BUSH£3.41 Add to
014381003475/1REAR HEIGHT ADJUST LEVER£6.43 Add to
015322778475/0HEIGHT ADJUST BRACKET£3.15 Add to
016112815270/0SCREW M6 x 25£2.06 Add to
017122450480/0SPRING£2.32 Add to
018322545152/0AXLE BRACKET£2.06 Add to
019112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
020322778473/0STOP BRACKET£2.87 Add to
021181003114/0GEARBOX [BLACK]£129.74 Add to
022122450478/0SPRING£9.28 Add to
023381302883/0FRONT WHEELS AXLE (FROM 20BA2WBH076281)£37.64 Add to
024381302889/0REAR WHEELS AXLE ASS.Y D280 TR MP1 50-55£50.70 Add to
025135064100/0TRAPEZOIDAL BELT Z30£10.50 Add to
026119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
027122570134/0LEFT PINION Z12 GEAR£7.92 Add to
028122570133/0RIGHT PINION Z12 GEAR£7.92 Add to
029112608600/0CIRCLIP D=12£2.08 Add to
030122753000/0PIN D=5.2 x 25.65£2.06 Add to
031381002046/0HEIGHT ADJUST TIE BAR (TO S/N 20BA2WBH082521)£53.22 Add to
032122519823/0WHEEL CONTROL ROD PIN£2.74 Add to
033322785305/1AXLE SUPPORT£3.00 Add to
035112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
036112645708/0PIN D=6 x 20£1.90 Add to
037322600145/0INNER WHEEL COVER D=200£2.06 Add to
038322600208/0INNER WHEEL COVER D=280£4.78 Add to
039122601909/0PULLEY£6.01 Add to
