Ejection-Guard

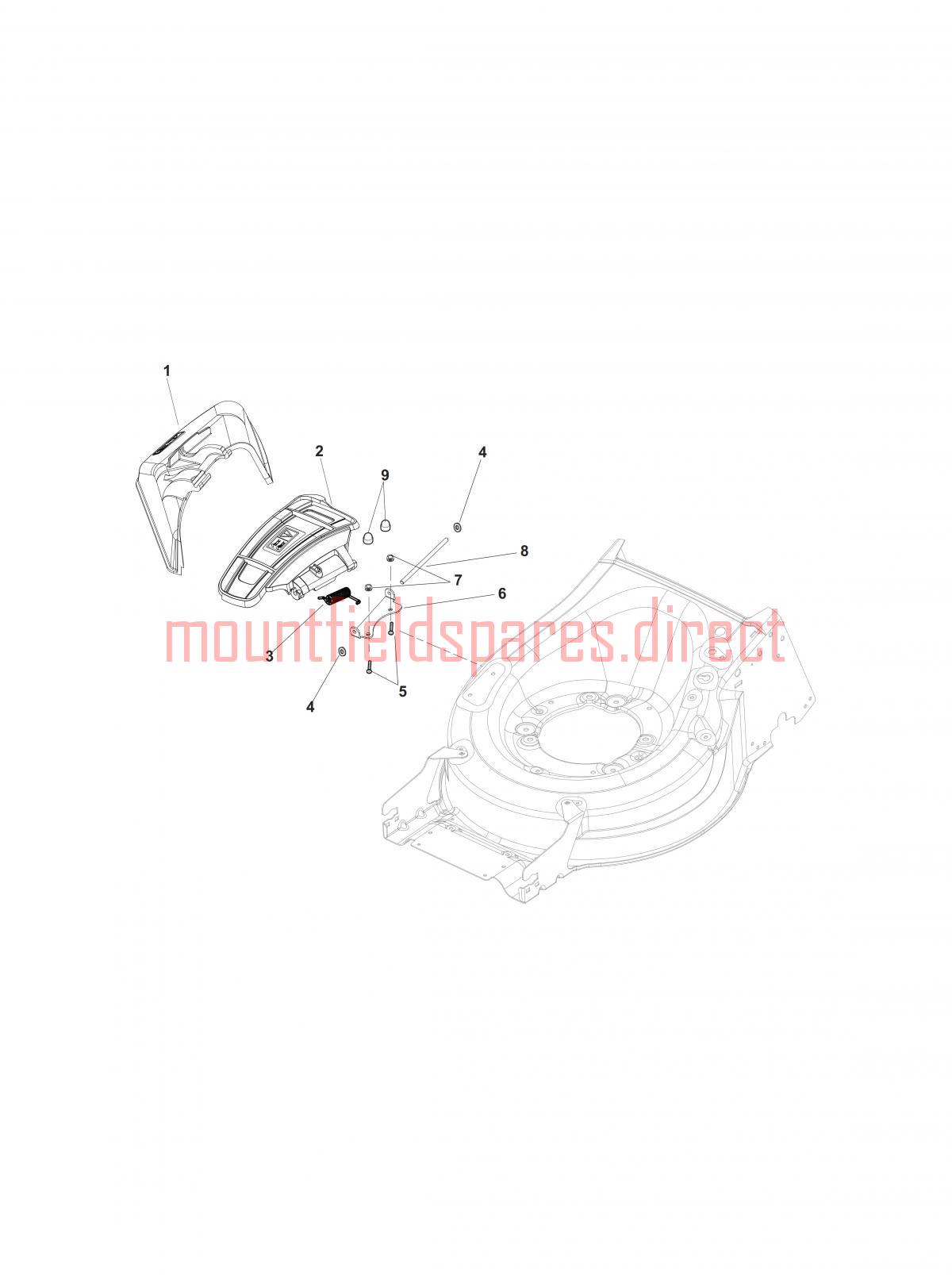

Ejection-Guard assembly details for Mountfield SP535-HW-V-294557838-M16 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322108315/0SIDE DISCHARGE FLAP [BLACK]£11.76 Add to
002322600309/0SIDE DISCHARGE GUARD MP1 50-55[BLACK]£20.24 Add to
003122450456/1DEFLECTOR SPRING£3.69 Add to
004112604896/0STARLOCK WASHER D=6£2.06 Add to
005112727803/0SCREW TCB TORX M6 x 14£2.06 Add to
006322806639/0FULCRUM BRACKET£3.00 Add to
007112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
008122517869/1DEFLECTOR ROD£4.23 Add to
009118203853/0BLACK NUT CAP M6£3.00 Add to
