Deck and Height Adjusting

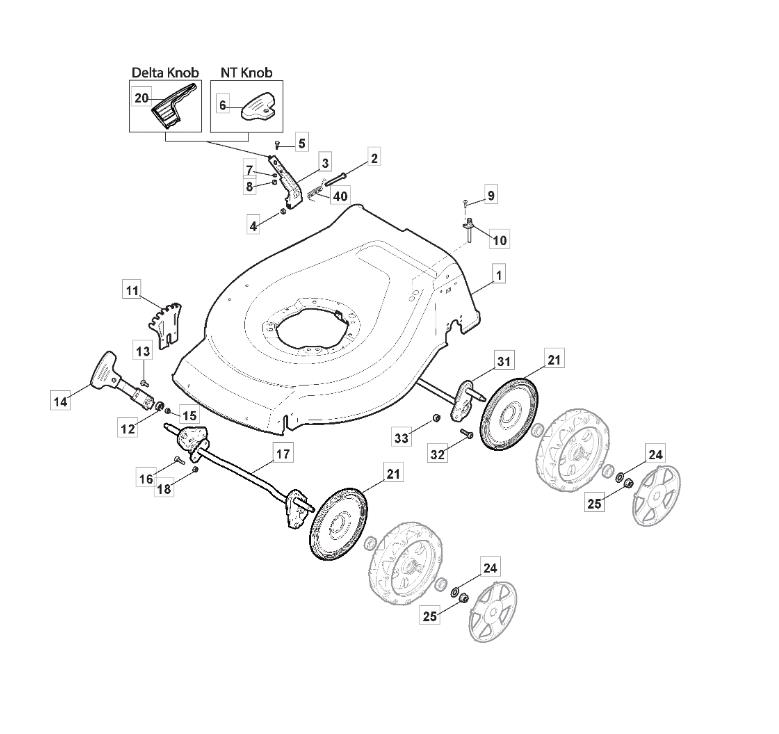

Deck and Height Adjusting assembly details for Mountfield 4820 HP (299481123/MTF) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004536/0STEEL DECK NT48 [RED]£198.80 Add to
002112789000/0SCREW TE M5 x 12£2.06 Add to
003322322857/0REAR HEIGHT ADJ.LEVER ZNW D180/200 CR/NT£6.27 Add to
004112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
005112788512/0SCREW M4 x 12£2.06 Add to
006322394503/0HEIGHT ADJUST KNOB£2.18 Add to
007112521310/0WASHER M4 4.3 x 9 x 0.8£1.79 Add to
008112150000/0SELF-LOCKING NUT M4£1.79 Add to
009112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
010322034002/0WASHING CONNECTION£2.06 Add to
011322735587/0HEIGHT ADJUST QUADRANT£5.12 Add to
012122171002/0AXLE SPACER£2.06 Add to
013112789000/0SCREW TE M5 x 12£2.06 Add to
015112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
016112727803/0SCREW TCB TORX M6 x 14£2.06 Add to
018112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
021322600145/0INNER WHEEL COVER D=200£2.06 Add to
024112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
025112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
031381302825/0REAR WHEELS AXLE NTD TS D=200£22.91 Add to
032112727803/0SCREW TCB TORX M6 x 14£2.06 Add to
033112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
040122446192/0SPRING£2.47 Add to
