Electric Motor/Blade

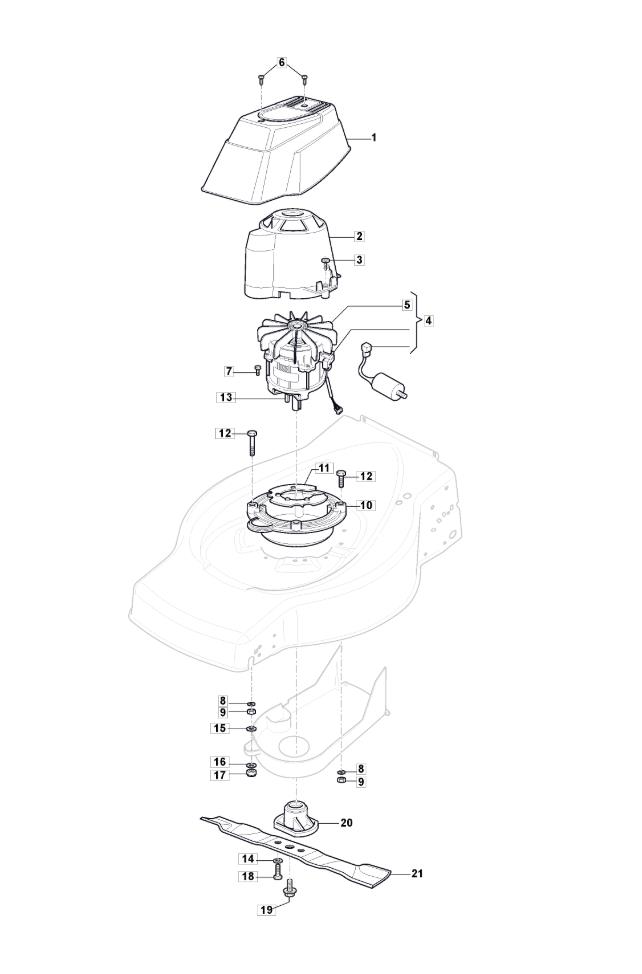

Electric Motor/Blade assembly details for Mountfield ES 460 (299114663/MTF) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
003112728710/0FLANG TCB SCREW SPAX D=5X45£1.79 Add to
005118740054/0MOTOR FAN 1600W£10.50 Add to
006118222045/0CAPACITOR 16UF£19.62 Add to
007112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
008112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
009112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
010322207211/4ELECTRIC MOTOR FLANGE£6.01 Add to
011322720360/2VENTILATION SCREEN£3.56 Add to
012112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
013112139440/0KEY 5 x 5 x 20£2.06 Add to
014112728680/0FLANGED SCREW D=5 x 25£2.06 Add to
015322463186/3BLADE BOSS D=17£8.73 Add to
016181004365/3BLADE 44cm£15.25 Add to
018112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
019381004352/1BLADE BOLT M9£4.52 Add to
