Wheels and Hub Caps

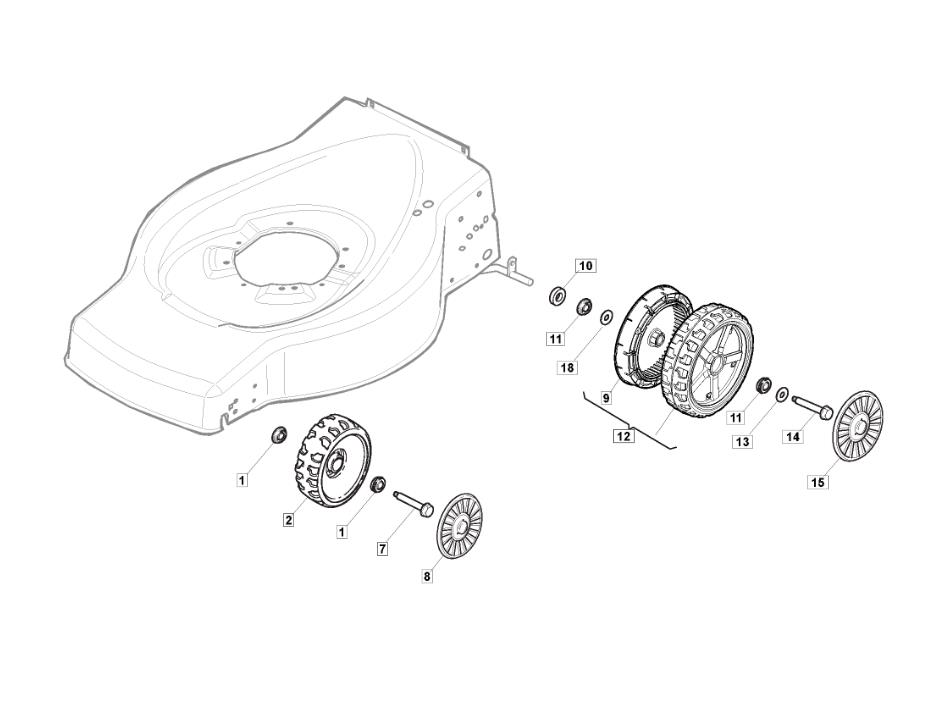

Wheels and Hub Caps assembly details for Mountfield SP45 (299274648/M17) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001122122206/0BEARING£2.32 Add to
002322686091/1WHEEL D=165mm£7.10 Add to
007122524341/0WHEEL BOLT£2.87 Add to
008322110491/0HUB CAP D=170 [GREY]£2.47 Add to
009322120109/0PLASTIC DRIVE GEAR D=190£7.10 Add to
010322170622/0WHEEL SPACER£1.79 Add to
011122122206/0BEARING£2.32 Add to
012381007468/0DRIVE WHEEL D=190£15.80 Add to
013112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
014112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
015322110348/0HUB CAP D=210 [GREY]£2.61 Add to
018122675100/0WASHER D=12.6 x 24 x 0.6£1.91 Add to
