Deck

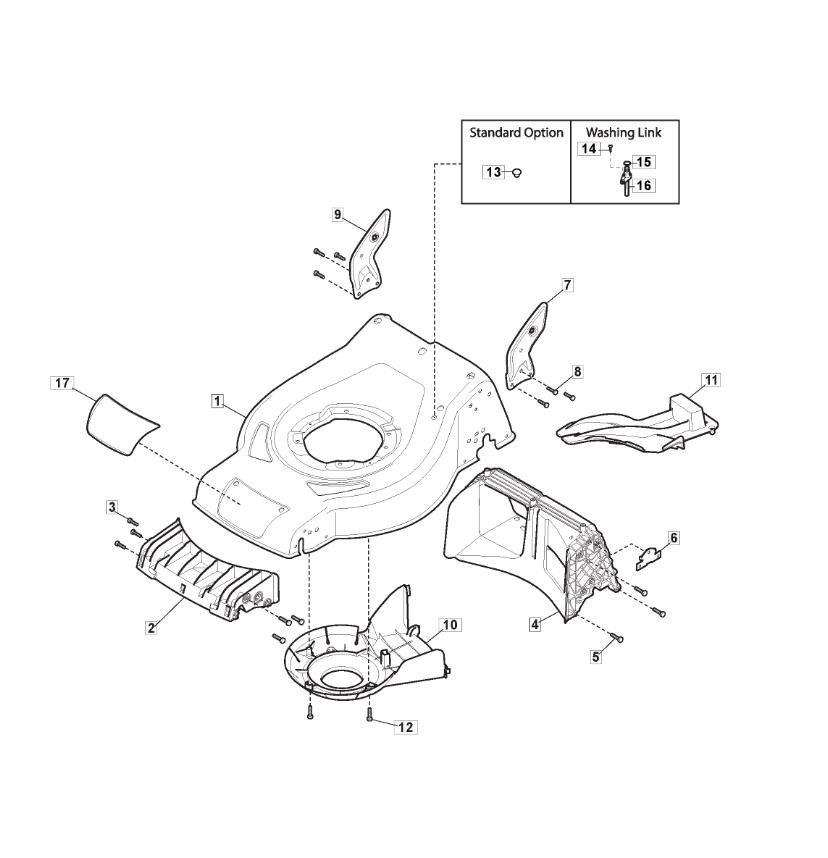

Deck assembly details for Mountfield SP53 ELITE (295546038/M18) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004940/0STEEL DECK CSC 53 [RED]£205.11 Add to
001381004949/0STEEL DECK CSC 53 [BLACK]£130.00 Add to
002322108308/1PLASTIC FRONT BAFFLE [CRUISER 53]£14.45 Add to
003112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
004322108392/0PLASTIC REAR BAFFLE£20.72 Add to
005112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
006322545213/0FIXING PLATE£2.06 Add to
007381005167/1L/H HANDLE BRACKET [CRUISER 53] BLACK£8.60 Add to
008112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
009381005165/1R/H HANDLE BRACKET [CRUISER 53] BLACK£8.04 Add to
010322060250/1BELT PROTECTION GUARD [CR53]£13.20 Add to
011322140244/1MULCHING PLUG [CRUISER 53]£16.78 Add to
012112728903/0SCREW£1.69 Add to
013322820077/1PVC DECK CAP£2.06 Add to
014112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
015119035000/0O RING 10.77 x 2.62£5.46 Add to
016322034002/0WASHING CONNECTION£2.06 Add to
017322055606/0FRONT DECK INSERT CS53 [BLACK]£3.41 Add to
018112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
019322034002/0WASHING CONNECTION£2.06 Add to
020322394522/0HEIGHT ADJUST KNOB-YELLOW - NLA£8.73 Add to
021322600145/0INNER WHEEL COVER D=200£2.06 Add to
022322820077/1PVC DECK CAP£2.06 Add to
023119035000/0O RING 10.77 x 2.62£5.46 Add to
024112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
027322600208/0INNER WHEEL COVER D=280£4.78 Add to
031381302835/0Axle, Rear Wheels (OBSOLETE) (OBSOLETE)N/A
031381302835/1REAR WHEELS AXLE£60.60 Add to
031381302837/1REAR WHEELS AXLE NTD TR 280£59.99 Add to
032122450460/0SPRING£5.05 Add to
034322545152/0AXLE BRACKET£2.06 Add to
036322785304/1REAR AXLE SUPPORT£2.74 Add to
037122570134/0LEFT PINION Z12 GEAR£7.92 Add to
040122570133/0RIGHT PINION Z12 GEAR£7.92 Add to
041122446192/0SPRING£2.47 Add to
