Deck and Height Adjusting

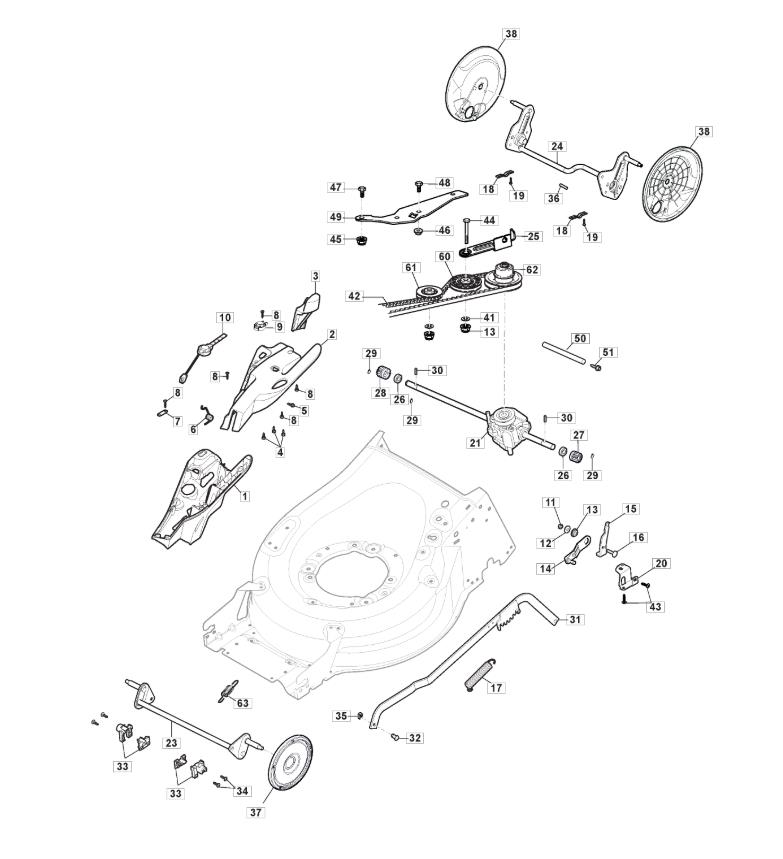

Deck and Height Adjusting assembly details for Mountfield SP535 HW V (294557838/M16) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322055264/0LOWER COVER [BLACK]£8.44 Add to
002322055265/0UPPER COVER [BLACK]£9.10 Add to
003322602026/0CONTROL BUTTON [YELLOW]£3.69 Add to
004112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
005125943004/0FLANGED SCREW TE 4.8£1.91 Add to
006122450477/0SPRING£1.91 Add to
007322981471/1FIX PLATE£2.06 Add to
008112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
009322602027/0LENS£2.18 Add to
010322602028/0HEIGHT ADJUST DECAL£2.06 Add to
011112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
012112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
013122517873/0BUSH£3.41 Add to
014381003475/2REAR HEIGHT ADJUST LEVER MP1 50-55£9.00 Add to
015322778475/0HEIGHT ADJUST BRACKET£3.15 Add to
016112815270/0SCREW M6 x 25£2.06 Add to
017122450480/0SPRING£2.32 Add to
018322545152/0AXLE BRACKET£2.06 Add to
019112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
020322778477/0BRACKET£5.19 Add to
021181003116/0VARIATOR GEARBOX£173.63 Add to
023381302883/0FRONT WHEELS AXLE (FROM 20BA2WBH076281)£37.64 Add to
024381302889/0REAR WHEELS AXLE ASS.Y D280 TR MP1 50-55£50.70 Add to
025322806647/0PULLEY SUPPORT BRACKET - NLA£5.46 Add to
026119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
027122570134/0LEFT PINION Z12 GEAR£7.92 Add to
028122570133/0RIGHT PINION Z12 GEAR£7.92 Add to
029112608600/0CIRCLIP D=12£2.08 Add to
030122753000/0PIN D=5.2 x 25.65£2.06 Add to
031381002046/0HEIGHT ADJUST TIE BAR (TO S/N 20BA2WBH082521)£53.22 Add to
032122519823/0WHEEL CONTROL ROD PIN£2.74 Add to
033322785305/1AXLE SUPPORT£3.00 Add to
034112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
035112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
036112645708/0PIN D=6 x 20£1.90 Add to
037322600145/0INNER WHEEL COVER D=200£2.06 Add to
038322600208/0INNER WHEEL COVER D=280£4.78 Add to
041112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
042135064379/0TRAPEZOIDAL BELT XPZ ISO4184 Lp=800£16.36 Add to
043112728704/1SELF-TAP SCREW K70 x 16£2.06 Add to
044112674550/0SCREW TE M6 x 30£2.06 Add to
045112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
046122671656/0WASHER£6.42 Add to
047112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
048112689500/0SCREW M6 x 40£2.06 Add to
049322806649/0SPEED VARIATOR SUPPORT PLATE£7.10 Add to
050322608567/0REINFORCEMENT CHASSIS MP1 50-55 VAR.£8.60 Add to
051112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
060122601914/0BELT GUIDE PULLEY£21.95 Add to
061122601915/0TENSION PULLEY£21.82 Add to
062122601932/0VARIATOR PULLEY£58.87 Add to
063122450481/0SPRING£3.55 Add to
