Blade

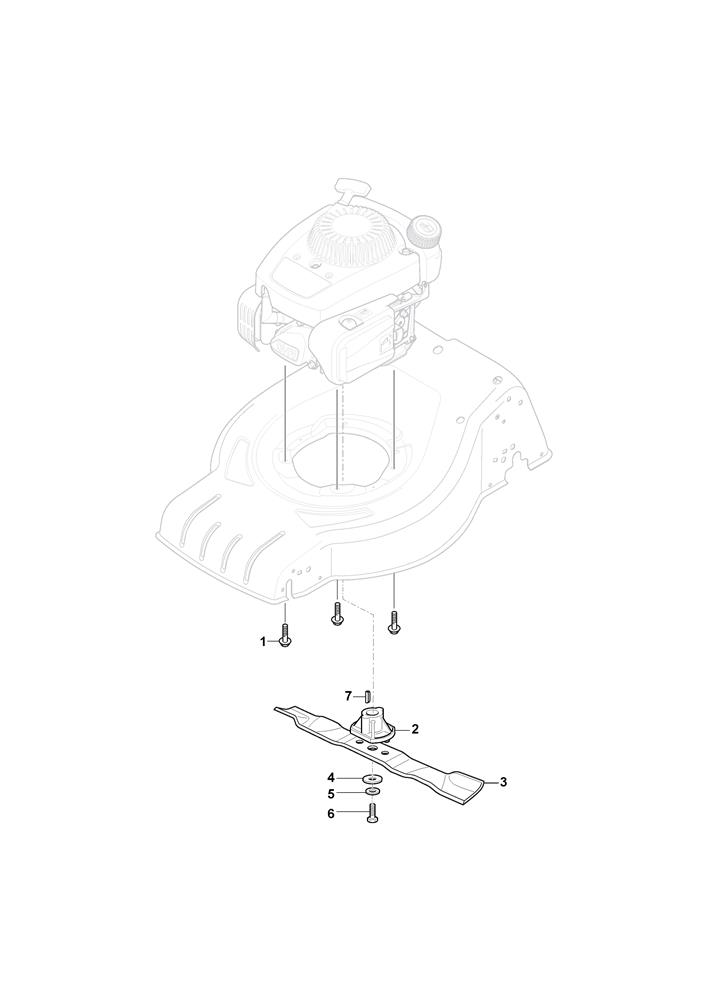

Blade assembly details for Mountfield HP46 (2L0481048/M19) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
003181004460/0MULCHING BLADE 46cm£15.13 Add to
004322680021/0FLAT ZINC WASHER 9.8 x 34 x 3£2.02 Add to
005112508128/0SPRING WASHER 28 x 10 x 2,5£1.79 Add to
006112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
007112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
