Deck without Brackets

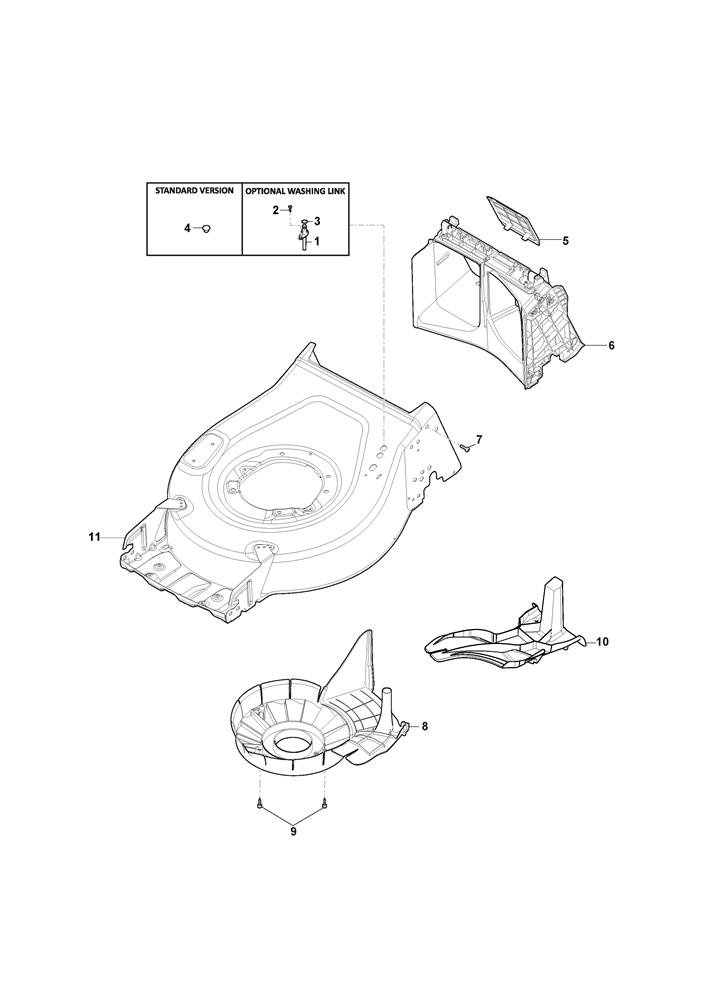

Deck without Brackets assembly details for Mountfield HP42 (2L0431048/M19) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322034002/0WASHING CONNECTION£2.06 Add to
002112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
003119035000/0O RING 10.77 x 2.62£5.46 Add to
004322820077/1PVC DECK CAP£2.06 Add to
005322600310/0REAR DOOR£5.46 Add to
006322108329/0PLASTIC REAR CONVEYOR CP1£19.61 Add to
008322060241/1BELT PROTECTION GUARD CR43£8.84 Add to
009112728903/0SCREW£1.69 Add to
010322140240/1MULCHING PLUG [CRUISER 43]£11.46 Add to
010322140249/0MULCHING PLUG CP1 43£12.82 Add to
011381005026/0CHASSIS CP1 43 GREY WRINKLED STIGA£129.55 Add to
