Ejection-guard

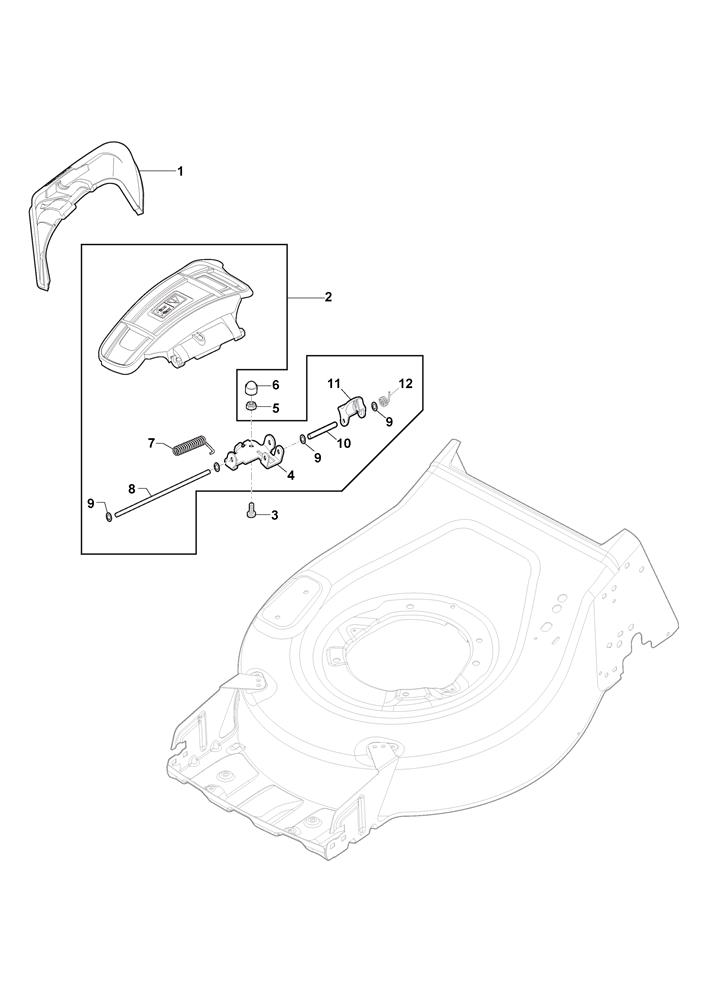

Ejection-guard assembly details for Mountfield HP425 (2L0431038/M19) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322108330/0SIDE DISCHARGE FLAP [BLACK] CP1 43£10.77 Add to
002381008161/1SIDE STONE GUARD ASS.Y CRUISER BLACK£12.00 Add to
003112727803/0SCREW TCB TORX M6 x 14£2.06 Add to
004322806659/0FULCRUM SUPPORT£5.60 Add to
005112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
006118203853/0BLACK NUT CAP M6£3.00 Add to
007122450456/1DEFLECTOR SPRING£3.69 Add to
008112604896/0STARLOCK WASHER D=6£2.06 Add to
009112604896/0STARLOCK WASHER D=6£2.06 Add to
010122517876/0SAFETY PIN£1.79 Add to
011322783013/0SAFETY LOCK£2.06 Add to
012122450493/0SAFETY SPRING£1.79 Add to
