Wheels and hub caps

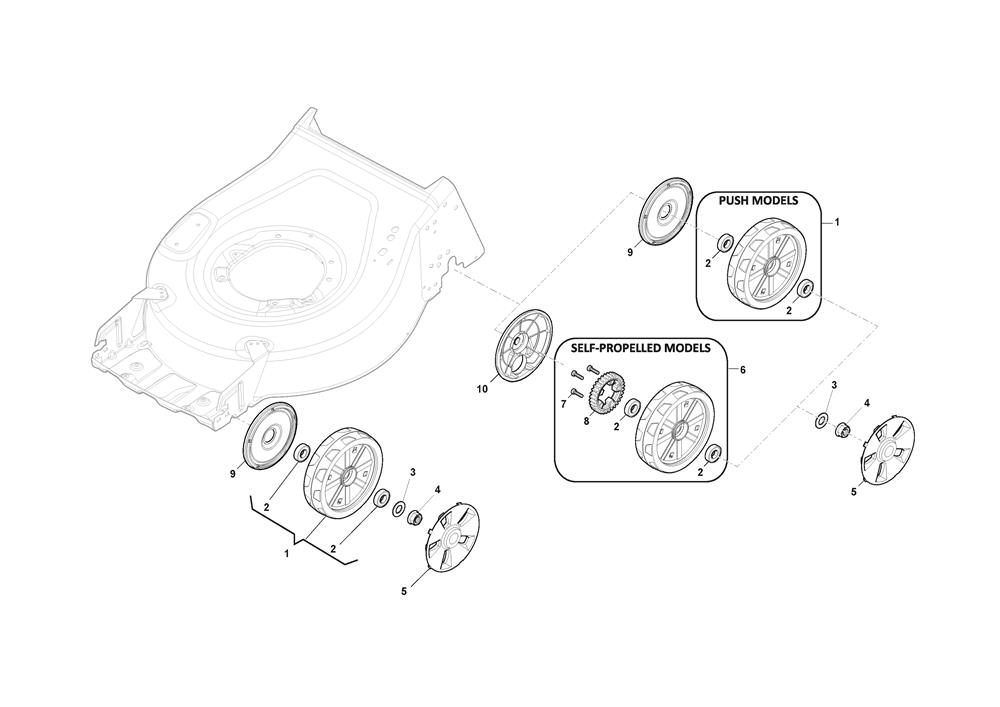

Wheels and hub caps assembly details for Mountfield HP425 (2L0431038/M19) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381007483/10N/A POA
002119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
003112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
004112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
005322110687/0DELTA HUB CAP D=200 [GREY]£2.87 Add to
006381007484/2WHEEL ASS.Y D=200 DELTA W/BEARINGS+CROWN£16.91 Add to
007112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
008322120114/0PLASTIC DRIVE GEAR D=200£7.23 Add to
009322600145/0INNER WHEEL COVER D=200£2.06 Add to
010322600239/0REAR INTERNAL WHEEL PROTECT.D=200 CR£3.96 Add to
