Ass.Y Roller

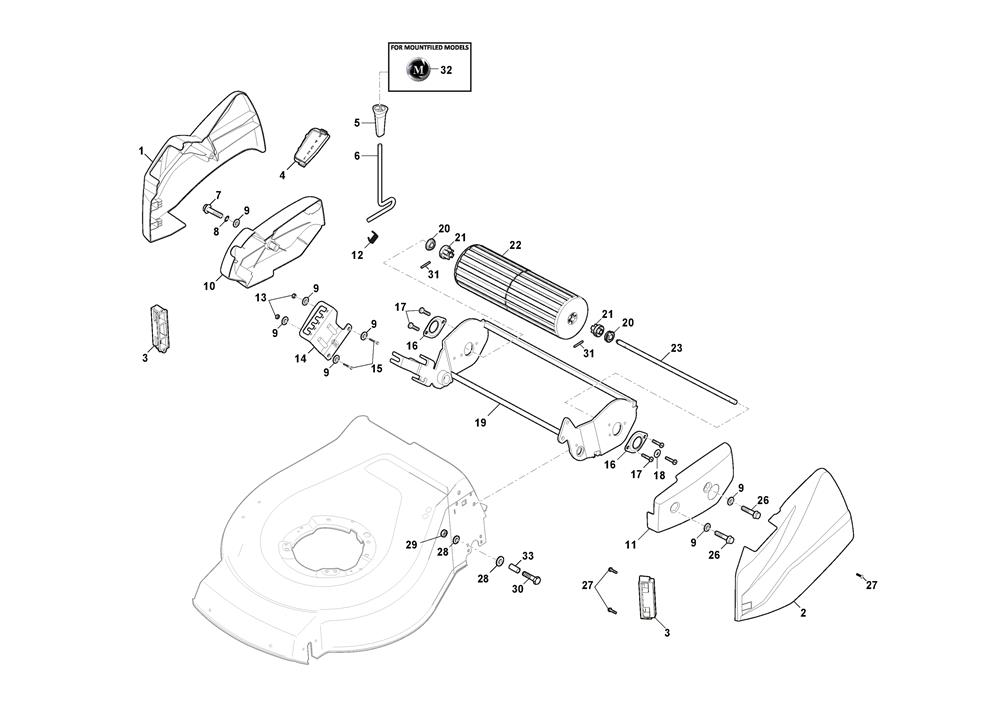

Ass.Y Roller assembly details for Mountfield S461R PD (299489043/M19) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322060289/0R/H ROLLER COVER NT48 [BLACK] + LOGO£10.02 Add to
002322060290/0L/H ROLLER COVER NT48 [BLACK] + LOGO£10.02 Add to
003322546053/0PLATE£3.00 Add to
004322570209/0HEIGHT ADJUST PLATE£8.73 Add to
005322394516/0HEIGHT ADJUST KNOB£4.35 Add to
006322321547/0HEIGHT ADJUST LEVER£9.14 Add to
007112735594/0HEX-HEAD SCREW M6 x 30£2.06 Add to
008119035002/0O RING 5.28 x 1.78£2.06 Add to
009112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
010322060248/1R/H ROLLER COVER NT [BLACK]£7.34 Add to
011322060249/1L/H ROLLER COVER NT [BLACK]£7.23 Add to
012122446194/0SPRING£3.83 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
014322735603/0HEIGHT ADJUST QUADRANT£9.41 Add to
015112727803/0SCREW TCB TORX M6 x 14£2.06 Add to
016322207325/0BEARING SUPPORT PLATE£2.32 Add to
017112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
018122671650/0WASHER£2.06 Add to
019381005169/0ROLLER SUPPORT ASSEMBLY£79.98 Add to
020119216036/0BEARING 6201-2RS£9.96 Add to
021322855000/0ROLLER BUSH£3.00 Add to
022381007401/0DRIVE ROLLER ASSEMBLY£32.99 Add to
023122033361/0ROLLER AXLE SHAFT£16.62 Add to
026112735592/0SELF-TAP SCREW M6 x 20£2.06 Add to
027112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
028122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
029112155015/0SELF-GRIP NUT M8(FROM 1ST SEPT 2015)£2.06 Add to
030112691700/0SCREW M8 x 55£1.91 Add to
031112620210/0ELASTIC ROLL PIN 4 X 30£2.06 Add to
032114366134/0ADJUST LEVER DECAL ROLLER [MOUNTFIELD]£9.14 Add to
033122167840/0SPACER£2.06 Add to
