Blade

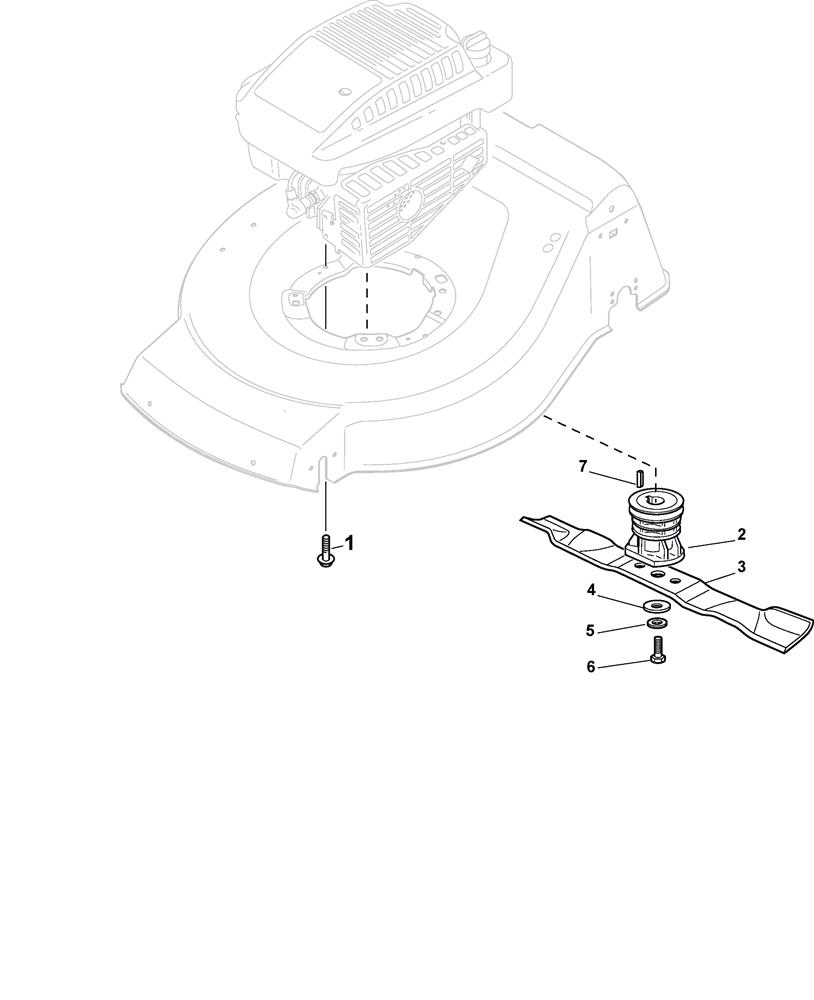

Blade assembly details for Mountfield S461R PD LS (299489543/M19) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
002122465607/4BLADE BOSS D=22.2mm£10.09 Add to
002122465607/4BLADE BOSS D=22.2mm£10.09 Add to
002122465607/4BLADE BOSS D=22.2mm£10.09 Add to
0031111-9255-01Mulching blade 2016 L=455£21.82 Add to
003181004458/0MULCHING BLADE 46cm£14.86 Add to
004122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
005112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
006112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
