Blade

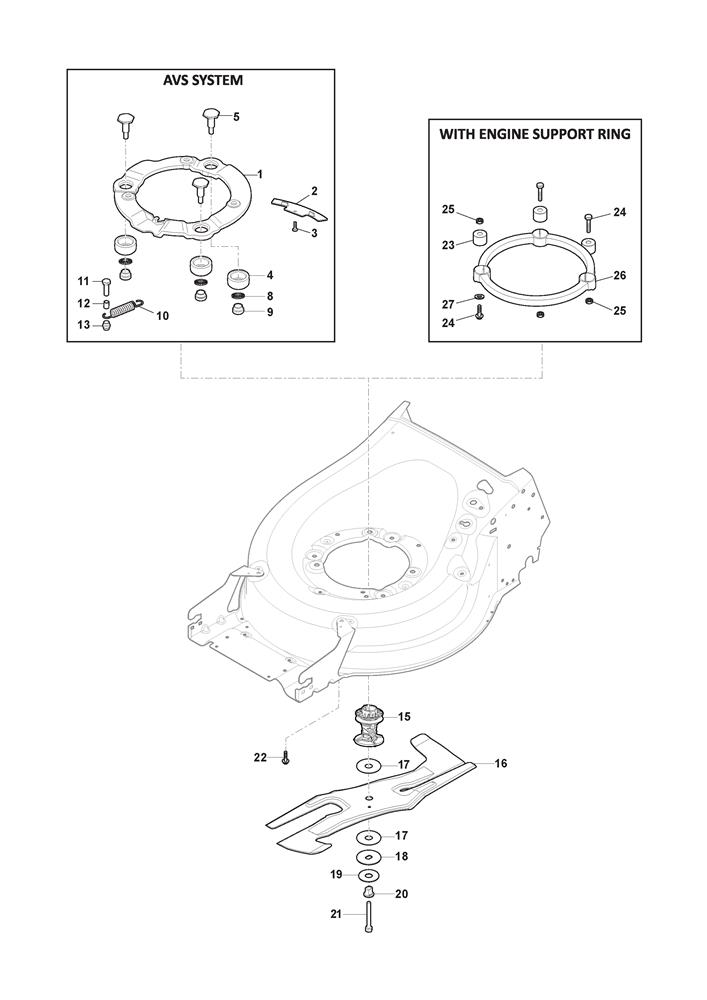

Blade assembly details for Mountfield S501R PD (294519043/M19 2020 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	322207226/1	ENGINE MOUNTING PLATE	£35.11	Add to
002	322551536/0	PLATE	£4.10	Add to
003	112728210/0	SCREW TORX M4 x 10	£1.79	Add to
004	322250015/1	AVS RUBBER DAMPER	£7.51	Add to
005	122519816/0	PIN	£10.91	Add to
008	112543002/0	SPRING WASHER M8 C60	£1.58	Add to
010	122450439/0	TENSION SPRING	£3.69	Add to
011	112791400/0	SCREW TE M6x20 UNI 5739 ACC.4.8	£1.79	Add to
012	122170846/0	SPACER	£3.55	Add to
015	122465648/0	BLADE BOSS D=22	£16.23	Add to
016	1111-9256-02	TWINCLIP BLADE 50 [STIGA PACK] L=480	£69.78	Add to
016	181004415/0	TWINCLIP BLADE 50	£58.87	Add to
017	322672110/1	FRICTION WASHER 18.3 x 60 x 1.5	£1.91	Add to
018	322672105/0	BLADE WASHER 60 x 18 x 2	£1.91	Add to
019	112508120/0	SPRING WASHER 18.4 x 50 x 2	£3.72	Add to
020	122041943/0	BUSH	£10.02	Add to
021	112736820/0	HEX-HEAD SCREW 3/8" x 3"	£2.71	Add to
022	112735108/1	TELF-FORM SCREW 3/8" X 1¼" UNC	£2.57	Add to
023	122170835/0	ENGINE SPACER	£6.63	Add to
025	112154210/0	SELF-LOCK WINGED NUT M8 DIN 6927	£2.06	Add to
026	322170964/0	ENGINE SUPPORT RING	£4.42	Add to
027	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
