Blade

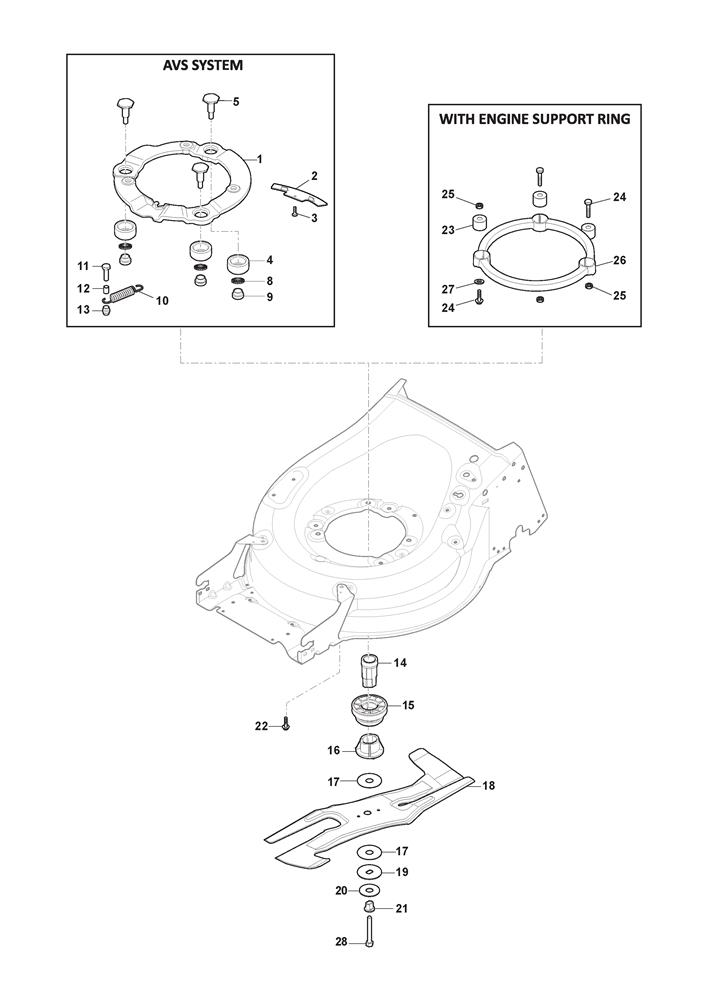

Blade assembly details for Mountfield S501R V LS (294519543/M19) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322207226/1ENGINE MOUNTING PLATE£35.11 Add to
002322551536/0PLATE£4.10 Add to
003112728210/0SCREW TORX M4 x 10£1.79 Add to
004322250015/1AVS RUBBER DAMPER£7.51 Add to
005122519816/0PIN£10.91 Add to
008112543002/0SPRING WASHER M8 C60£1.58 Add to
010122450439/0TENSION SPRING£3.69 Add to
011112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
012122170846/0SPACER£3.55 Add to
014122785493/0PULLEY ADAPTOR D=22£14.05 Add to
015122601933/0PULLEY£60.24 Add to
0161111-9262-01Blade hub MP2 ROL D 25£15.81 Add to
016122465656/0BLADE BOSS D=22£11.46 Add to
017322672110/1FRICTION WASHER 18.3 x 60 x 1.5£1.91 Add to
0181111-9256-01TWINCLIP BLADE 50£70.37 Add to
0181111-9256-02TWINCLIP BLADE 50 [STIGA PACK] L=480£69.78 Add to
018181004415/0TWINCLIP BLADE 50£58.87 Add to
019322672105/0BLADE WASHER 60 x 18 x 2£1.91 Add to
020112508120/0SPRING WASHER 18.4 x 50 x 2£3.72 Add to
021122041943/0BUSH£10.02 Add to
022112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
023122170835/0ENGINE SPACER£6.63 Add to
024112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
025112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
026322170964/0ENGINE SUPPORT RING£4.42 Add to
027112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
028112736820/0HEX-HEAD SCREW 3/8" x 3"£2.71 Add to
