Protection, Belt

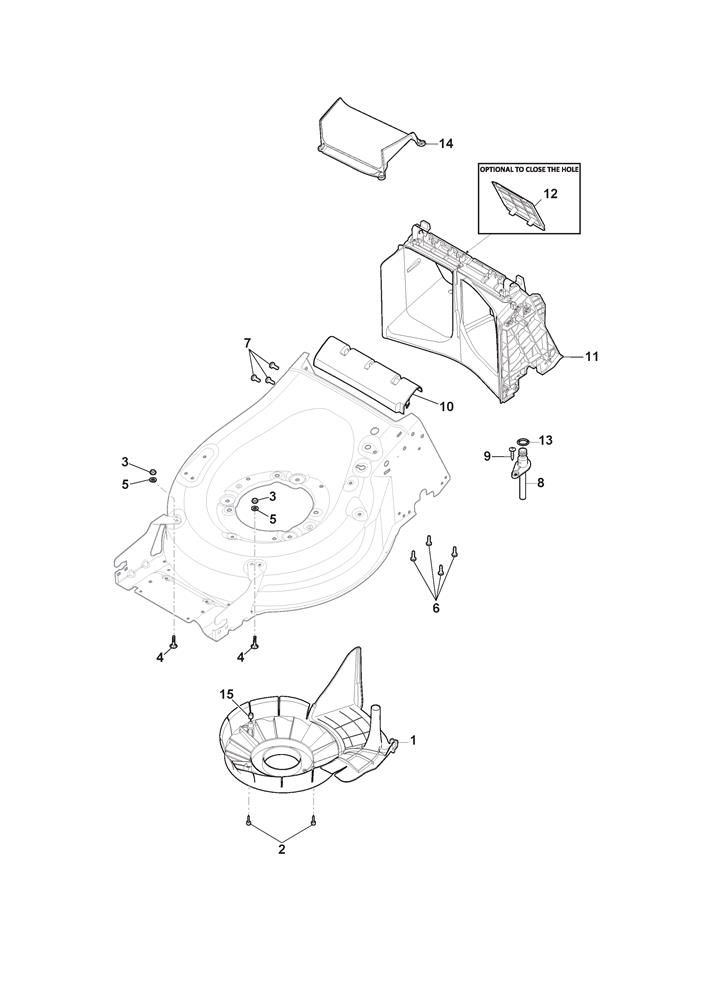

Protection, Belt assembly details for Mountfield S501R V LS (294519543/M19) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322060283/0BELT PROTECTION GUARD MP2 50-R£16.36 Add to
001322060283/2BELT PROTECTION GUARD MP2 50-R£17.89 Add to
002112735645/0SCREW TCB TORX M4 x 20£2.18 Add to
004112815206/0SCREW M6 x 12 UNI5732 8.8 WHITE ZINC£2.05 Add to
005112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
006112728210/0SCREW TORX M4 x 10£1.79 Add to
007112735664/0SCREW M6 x 16£2.02 Add to
008322034006/0WASHING CONNECTION£7.36 Add to
010322109588/0DEFLECTOR SUPPORT [BLACK] MP2£5.87 Add to
011381004826/0REAR BAFFLE£155.02 Add to
012322600310/0REAR DOOR£5.46 Add to
013119035000/0O RING 10.77 x 2.62£5.46 Add to
014322108320/0REAR BAFFLE PLATE£22.49 Add to
015122042073/0BELT GUARD BUSH MP1-MP2£2.06 Add to
