Wheels and hub caps

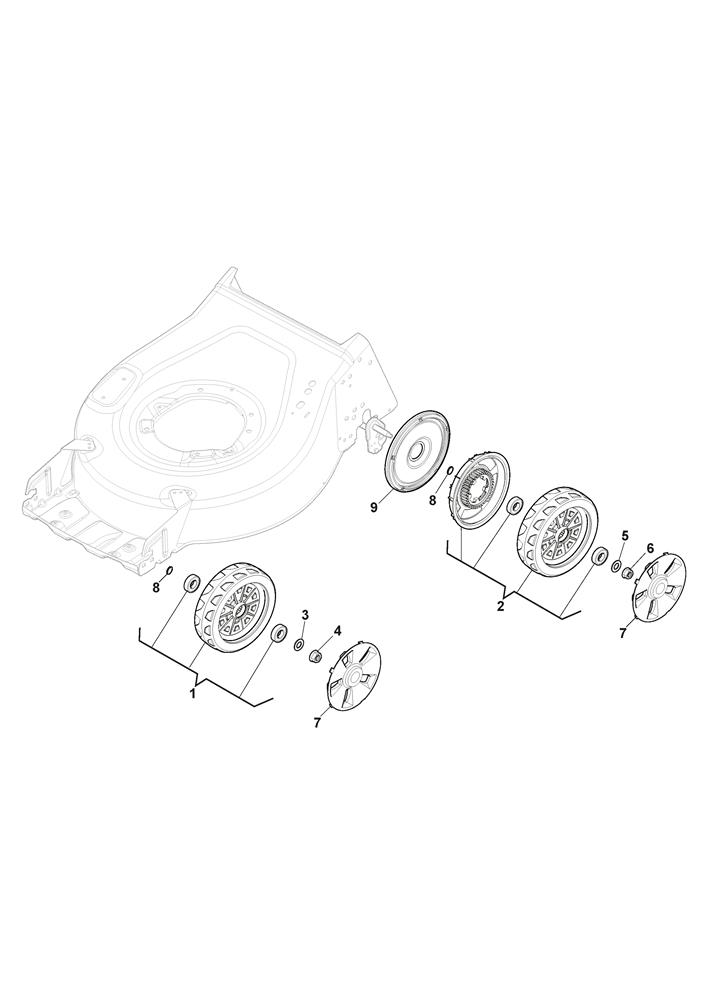

Wheels and hub caps assembly details for Mountfield SP42 (2L0432048/M19) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381007814/0WHEEL ASSEMBLY ECO 200£18.27 Add to
003112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
005112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
007322110643/0HUB CAP D=200/210 [GREY]£2.86 Add to
008321660100/0THRUST WASHER 13 X 22 X 0.5£2.32 Add to
009322600239/0REAR INTERNAL WHEEL PROTECT.D=200 CR£3.96 Add to
