Height Adjusting

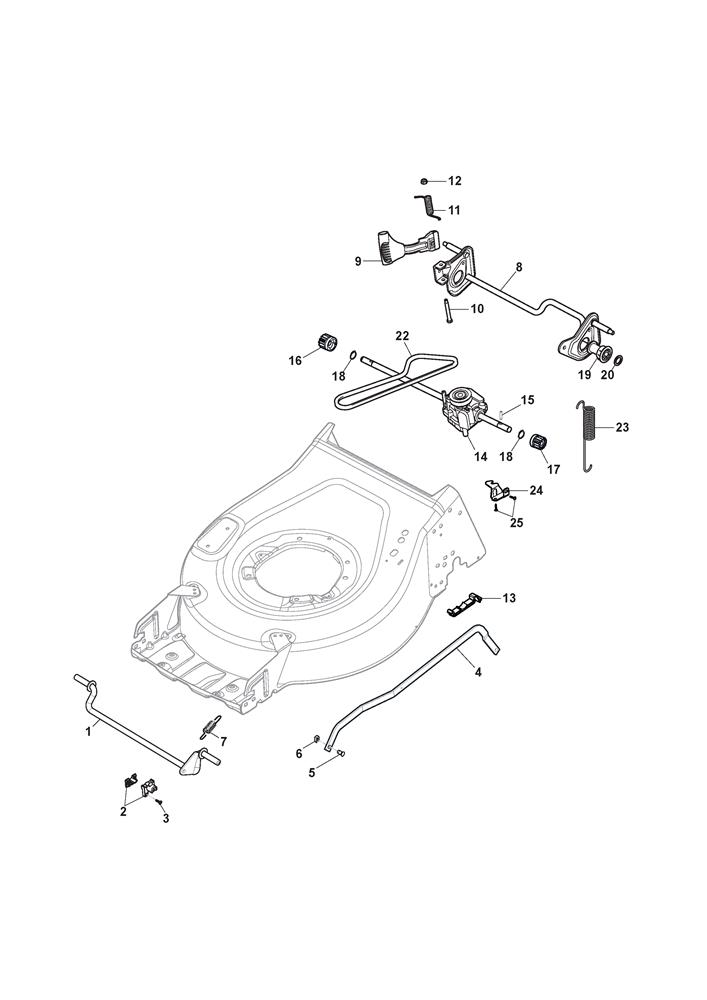

Height Adjusting assembly details for Mountfield SP46 (2L0482048/M19) 2020 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381302935/0	FRONT WHEELS AXLE ZINC. CP1 48 200/200	£33.39	Add to
001	381302935/1	ASS.FRONT AXLE WHEELS D200 BLACK CP1 48	£31.63	Add to
002	322785305/1	AXLE SUPPORT	£3.00	Add to
004	322869733/0	HEIGHT ADJUST BAR ZINC 200/200 CP1 48	£17.86	Add to
005	122519823/0	WHEEL CONTROL ROD PIN	£2.74	Add to
006	112000930/0	CIRCLIP D=6	£0.79	Add to
006	112436050/0	PIN PLATE D=8 (EUROFIX FX70308PH)	£1.83	Add to
007	122446193/0	SPRING	£4.99	Add to
008	381302851/1	REAR WHEELS AXLE D=200 CR 53	£46.61	Add to
009	381003356/1	HEIGHT ADJ.LEVER WHEELS D180 CRUISER	£6.27	Add to
010	122534131/0	PIN	£2.06	Add to
011	122446192/0	SPRING	£2.47	Add to
012	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
013	322785500/0	REAR AXLE SUPPORT CP 1	£2.18	Add to
014	181003134/0	GEARBOX G.T. CP1	£93.73	Add to
015	122753000/0	PIN D=5.2 x 25.65	£2.06	Add to
016	122570110/1	RIGHT PINION Z10 GEAR(METAL)was Plastic	£8.52	Add to
017	122570120/1	LEFT PINION Z10 GEAR(METAL)was Plastic	£8.75	Add to
018	112608600/0	CIRCLIP D=12	£2.08	Add to
019	322042066/0	AXLE BUSH	£1.91	Add to
020	112521371/0	WASHER M12 13 x 20 x 2	£2.06	Add to
022	135063800/0	TRAPEZOIDAL BELT Z 27 LP=710(BRONZE GEAR)	£11.01	Add to
023	122430254/0	TENSION SPRING	£4.52	Add to
024	322778473/1	STOP BRACKET	£2.06	Add to
025	112728699/0	SELF-TAPPING SCREW K60 x 22	£2.06	Add to
