Wheel and Hub Cap

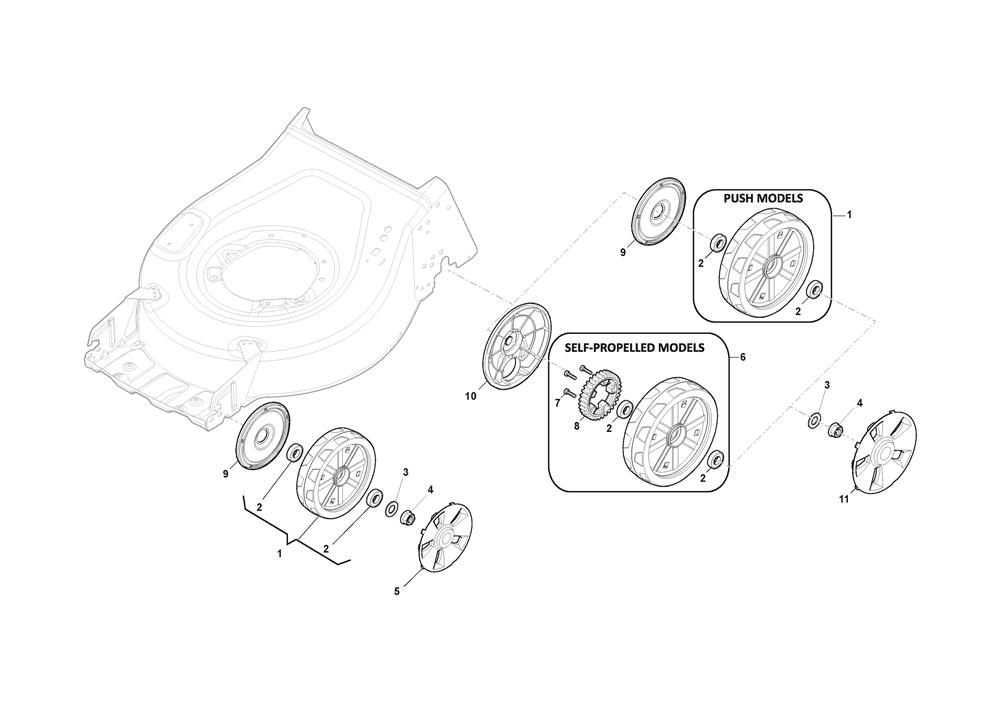

Wheel and Hub Cap assembly details for Mountfield SP46 Elite (2L0486038/M19) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381007483/2WHEEL ASSEMBLY D=200£18.82 Add to
002119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
003112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
005322110643/0HUB CAP D=200/210 [GREY]£2.86 Add to
006381007479/2DRIVE WHEEL ASSEMBLY D=280£31.66 Add to
007112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
008381007472/2WHEEL ASS.Y D=280 NT W/BEARINGS+CROWN£39.80 Add to
009322600145/0INNER WHEEL COVER D=200£2.06 Add to
010322600240/0INNER WHEEL COVER D=280£5.45 Add to
011322110644/0HUB CAP D=280/300 [GREY]£3.64 Add to
