Engine - Piston, Crankshaft

Engine - Piston, Crankshaft assembly details for Mountfield SP46 LS (2L0486548/M19) 2020 model

Parts list

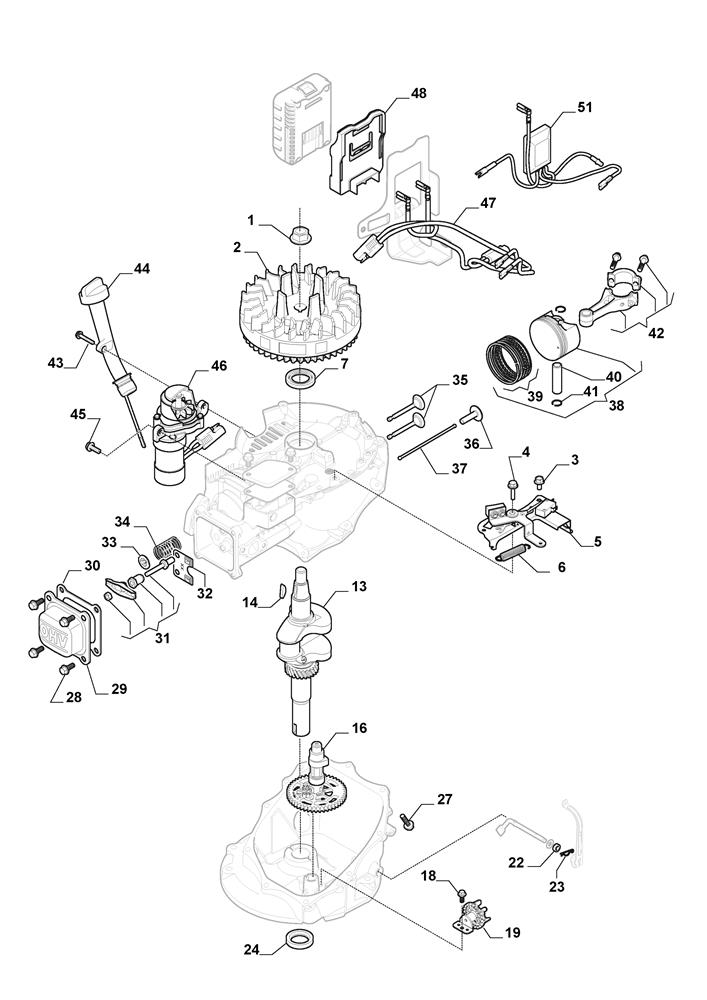

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118550336/0NUT£6.42 Add to
002118551470/0FLYWHEEL£82.05 Add to
003118551277/0SCREW M6 X 14 (OBSOLETE)N/A
005118551521/0FLYWHEEL BRAKE/STOP SWITCH£37.16 Add to
006118551522/0TENSION SPRING£2.32 Add to
007118550300/0OIL SEAL£7.63 Add to
013118551484/0CAMSHAFT£132.33 Add to
014118550288/0WOODRUFF KEY£6.55 Add to
016118551448/0CAMSHAFT ASSY£38.44 Add to
018112789000/0SCREW TE M5 x 12£2.06 Add to
019118551460/0SPEED GOVERNOR ASSEMBLY£17.59 Add to
022118550935/0OIL SEAL (OBSOLETE) (OBSOLETE)N/A
023118550856/0LOCK PIN (OBSOLETE) (OBSOLETE)N/A
024118550379/0OIL SEAL£7.10 Add to
028118551276/0HEXAGONAL BOLT£3.15 Add to
029118550891/0HEAD COVER£13.77 Add to
030118550892/0HEAD COVER GASKET£3.69 Add to
031118550893/0ROCKER VALVE ARM SET£13.64 Add to
032118550894/0PLATE£4.82 Add to
033118550895/0RETAINER VALVE SPRING (OBSOLETE) (OBSOLETE)N/A
034118550896/0VALVE SPRING£3.40 Add to
035118550910/0INTAKE/EXHAUST VALVE KIT£20.72 Add to
036118551449/0LIFTER VALVE£10.09 Add to
037118551251/0PUSH ROD£4.69 Add to
038118551485/0PISTON ASSEMBLY£54.79 Add to
039118551445/0PISTON RING SET£28.90 Add to
040118550915/0PISTON PIN£5.73 Add to
041118550914/0PISTON PIN CLIP£2.06 Add to
042118551446/0CONNECTING ROD£39.80 Add to
044118551444/0OIL DIPSTICK£12.96 Add to
046118551471/0STARTER MOTOR£146.85 Add to
047118551472/0STARTING CABLE ASSEMBLY£28.90 Add to
048118551477/0BATTERY BOX£72.50 Add to
051118551524/0RELAY [WBE 120-140-170]£163.99 Add to
