Flywheel

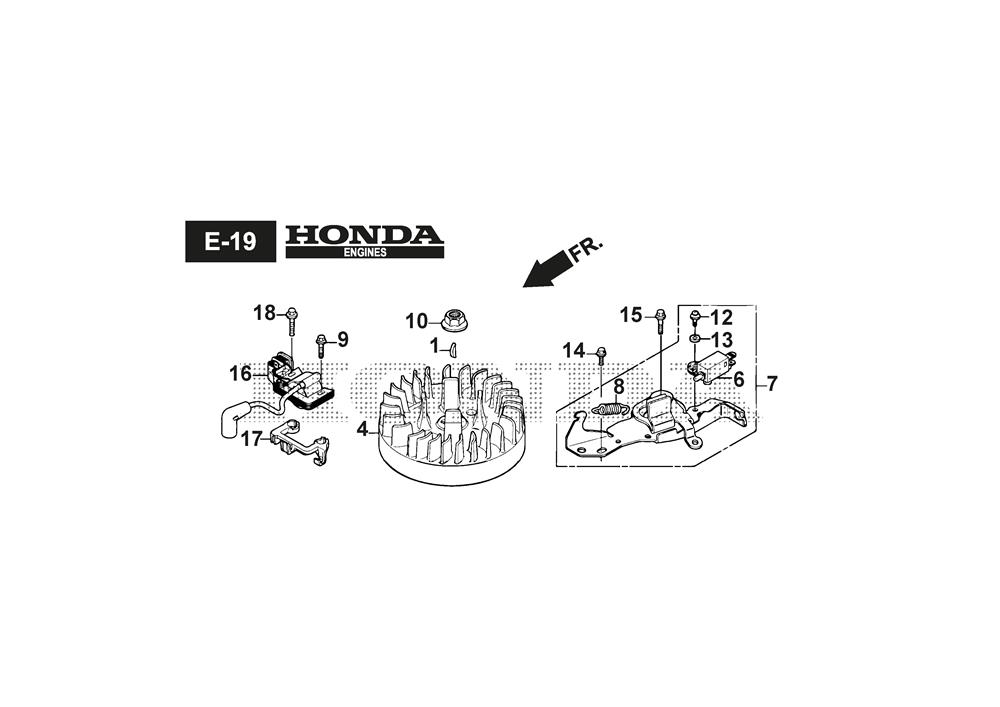

Flywheel assembly details for Mountfield SP505 V SC (294513538/M20) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118551807/0WOODRUFF KEY 25 X 18£2.86 Add to
004118552308/0FLYWHEEL COMP.£184.24 Add to
007118552309/0BRAKE ASSY.£77.95 Add to
008118552213/0BRAKE LEVER SPRING£3.89 Add to
016118552310/0COIL ASSY., IGNITION£184.24 Add to
