Speed variator command

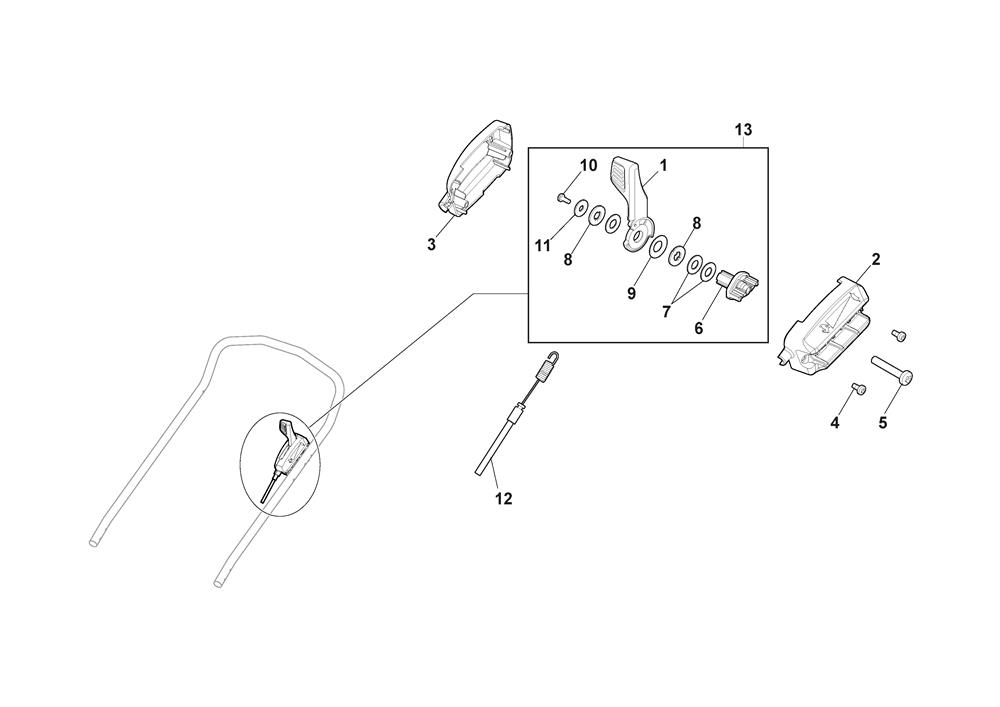

Speed variator command assembly details for Mountfield SP505R V (294519038/M19) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381007240/0VARIATOR SPEED LEVER MP2(BLACK) (To s/n SK7995587)£31.02 Add to
001381007240/1VARIATOR SPEED LEVER [BLACK](From s/n SK7995588)£33.54 Add to
002322722832/0LEFT CABLE HOUSING£9.00 Add to
003322722831/0RIGHT CABLE HOUSING£8.32 Add to
004112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
005112735660/0SCREW M6 x 35£2.00 Add to
006322524358/0LEVER PIN£5.21 Add to
007112508127/0SPRING WASHER 25 x 12.2 x 0.9£3.64 Add to
008322672157/0WASHER£2.06 Add to
009322672155/0FRICTION WASHER 12.2 x 25 x 1.5£3.15 Add to
010112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
011112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
012381030119/0VARIATOR CABLE£20.45 Add to
013381007821/0MP2 VARIATOR SPEED LEVER ASSY [BLACK]£37.08 Add to
