Height Adjusting

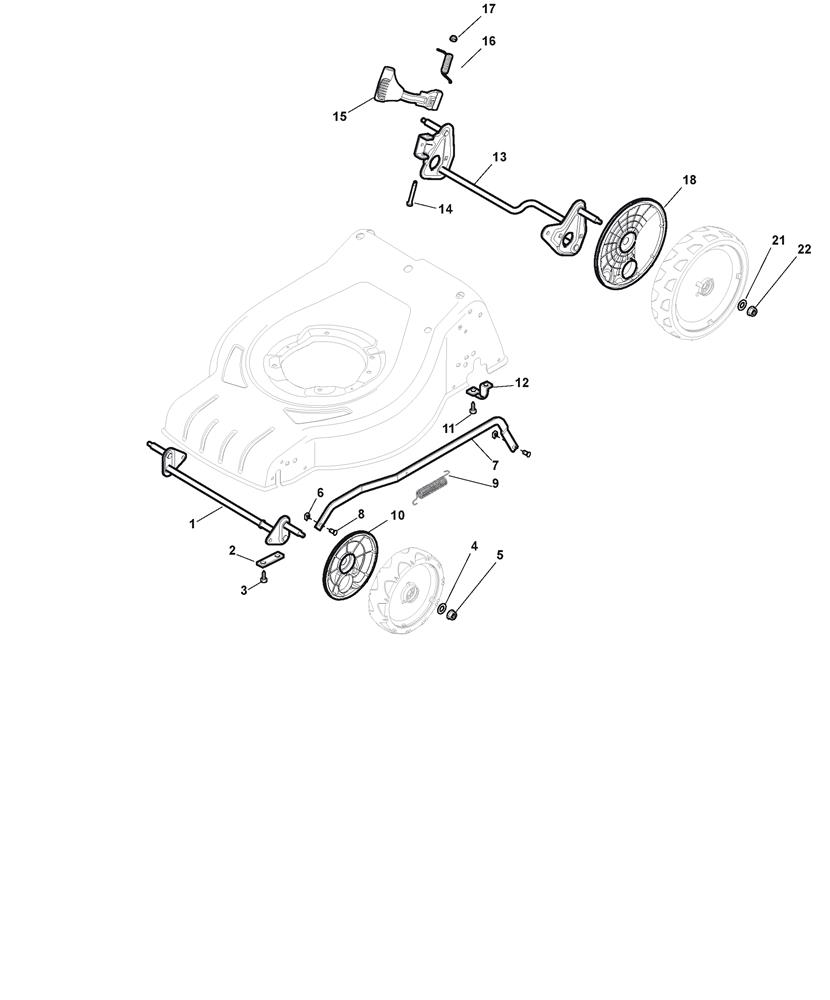

Height Adjusting assembly details for Mountfield SP53 ELITE (295546038/M19 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381302853/1ASS.FRONT AXLE WHEELS D200 CRUISER 53£34.35 Add to
002322545142/0REAR WHEEL AXLE STOP PLATE£2.06 Add to
003112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
004112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
006112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
007322869679/0HEIGHT ADJUST TIE BAR£26.16 Add to
008122519823/0WHEEL CONTROL ROD PIN£2.74 Add to
009122446193/0SPRING£4.99 Add to
010322600145/0INNER WHEEL COVER D=200£2.06 Add to
011112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
012322545152/0AXLE BRACKET£2.06 Add to
013381302849/0REAR WHEEL AXLE£56.21 Add to
014122534131/0PIN£2.06 Add to
015381003458/0HEIGHT ADJUST LEVER D=280 CR£11.18 Add to
015381003459/0HEIGHT ADJUST LEVER D=280 CR£14.58 Add to
015381003459/1HEIGHT ADJUST LEVER D=280 CR£13.77 Add to
016122446192/0SPRING£2.47 Add to
018322600240/0INNER WHEEL COVER D=280£5.45 Add to
021112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
