Carburetor

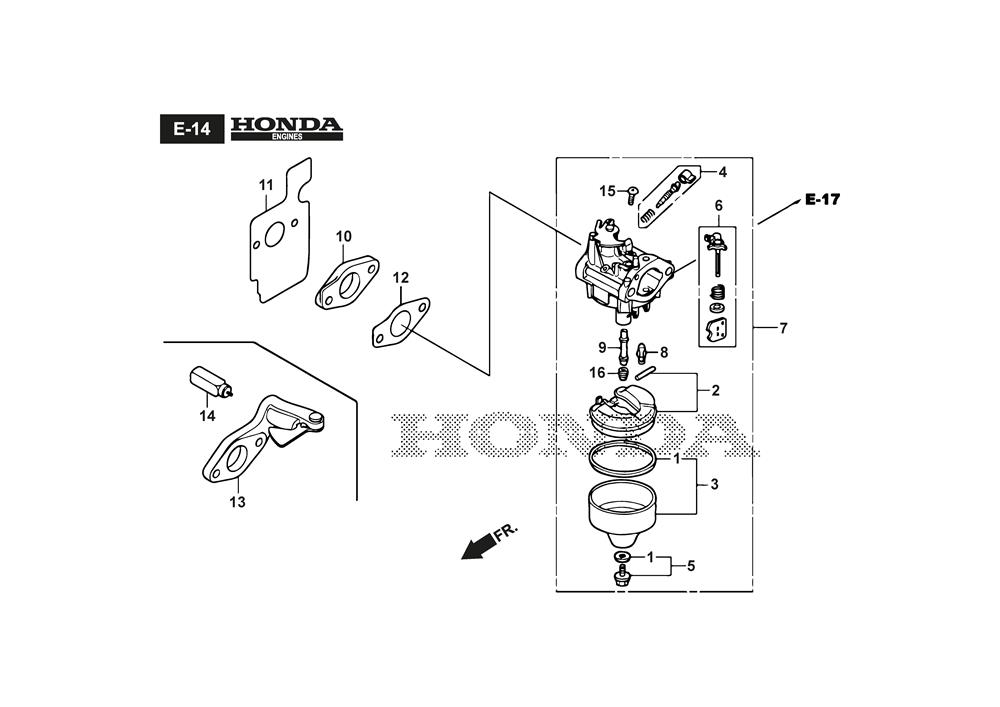

Carburetor assembly details for Mountfield SP555V (294563038/M20) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002118551931/0FLOAT SET£48.37 Add to
003118551934/0FLOAT CHAMBER SET£77.78 Add to
005118551937/0SCREW SET£10.88 Add to
007118551661/0CARBURETOR ASSY. (BB76G A)£163.80 Add to
011118551948/0INSULATOR GASKET£11.04 Add to
012118551957/0CARBURETTOR GASKET£3.09 Add to
013118552012/0CHOKE CONTROL ASSEMBLY£78.24 Add to
014118552015/0THERMOWAX ASSEMBLY£56.40 Add to
